OX-ZP653T 4G Smart Fire Helmet camera
- Brand OXIANG
- Model OX-ZP653T
- Description
4G Smart Fire Helmet camera， Fire Helmet camera， 4G Helmet camera......

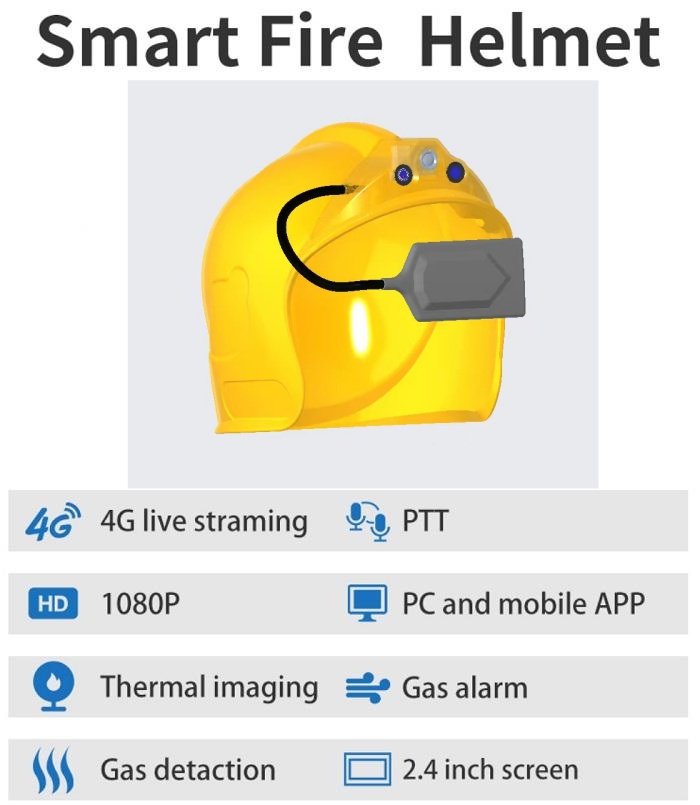

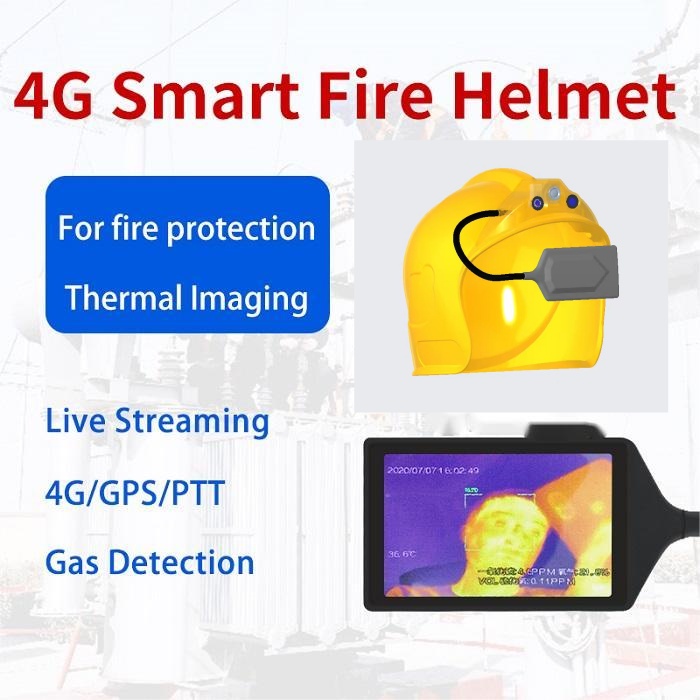

4G Smart Fire Helmet camera
Thermal imaging Pixel：320X240

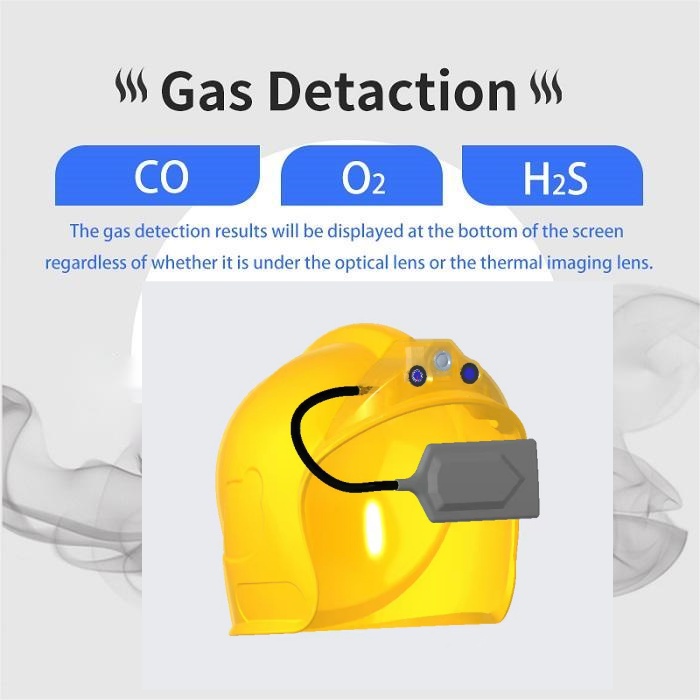

Gas Detection：CO，O2，H2S，CH4
Display：2.4inch TFT
Operation system：Android 8.1

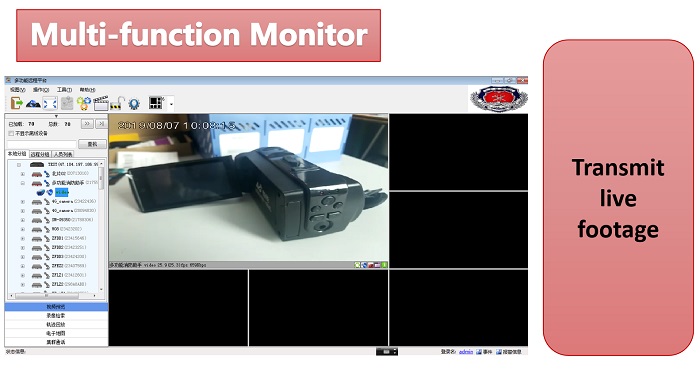

Live Streaming
4G/GPS/PTT

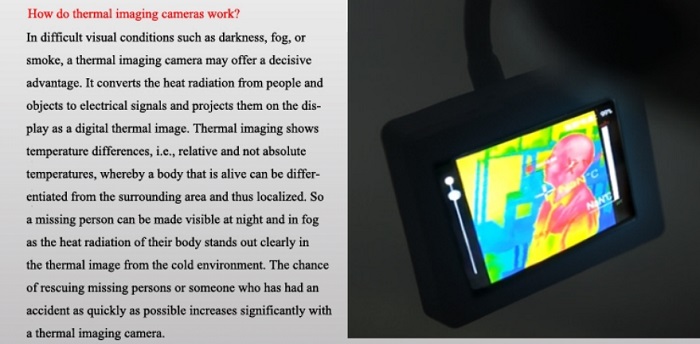

For fire protection Thermal lmaging
| Thermal imaging parameters | Uncooled infrared focal plane detection |
| Pixel：320X240 | |
| Viewing angle: 45-50 degrees 6.52mm f1.18 Minimum focal length: 0.5 meters | |
| Thermal sensitivity: 0.1 degree | |
| Frame rate: 9Hz; wavelength range: 8-14um | |
| Measuring range: -10 +600 degrees | |
| Measuring accuracy：0.4-- 0.5°C （32--42°C），100°C above +-1% | |
| Display：2.4inch TFT | |
| Gas Detection | CO，O2，H2S，CH4 |
| System | Operation system：Android 8.1 |
| Processor：MTK6739 Quad-core ARM@Cortex-A53 MPCore | |
| Visible Optics camera | Foucus range：0.5 Meters----Infinty |
| Angle of camera：120 ° | |
| Photo: 16MP JPEG format | |
| Other details | Distance of night vision：The human faces can be seen at 10 Meters in a totally black environment |
| Working time: standby more than 25h, camera work more than 5h | |
| Waterproof：IP66 | |
| Lithium battery ：3600mAh | |
| Storage capacity | Support 16G/32G/64G/128G(With Standard 32GB TF Card) |
| Video coding resolution | 1080P/720P mp4 Format |
| Video FPS | 1080P@30fps /720@30fps |
| Video bitrate | 256kbps-8Mbps |
| WiFi | Support 802.11b/g protocol，2.4GHZ |
| 4G function | TDD：B38 B39 B40 B41 FDD:B 1 3 5 8 4 7 28B |
| Bluetooth | BT4.0 |
| Dimension/weight | (L*W*H) 115*60*45mm/About 180g （Helmet not included） |
| Working temperature | -30°C to +70°C |
| Real time play | support real-time 160 way data |
| Beidou/GPS | Same Smarteye screen can check up to 256 camera position tracking |
| Data upload | support D1 H.264 data upload |
| Wireless intercom: | Real time 4G network wireless intercom,Multi person meeting |
| 4G upload:Real time uploaded function | |
| Data of real time uploaded can be checked in the platform | |
Fire rescue
Firefighters are unable to accurately determine the highest point of fire temperature at the point of fire occurrence, and cannot accurately determine the specific concentration of various toxic gases on site at the point of fire occurrence. Off site dispatch and command personnel cannot have real-time understanding of the specific situation inside the fire point and the environment in which each firefighter is located, resulting in the inability to cooperate and dispatch firefighters to work in a timely manner

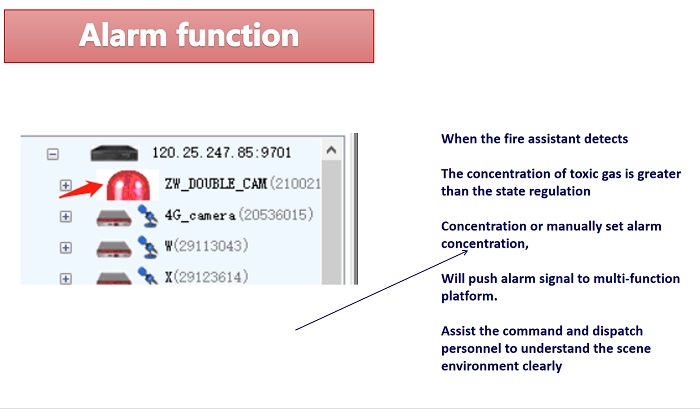

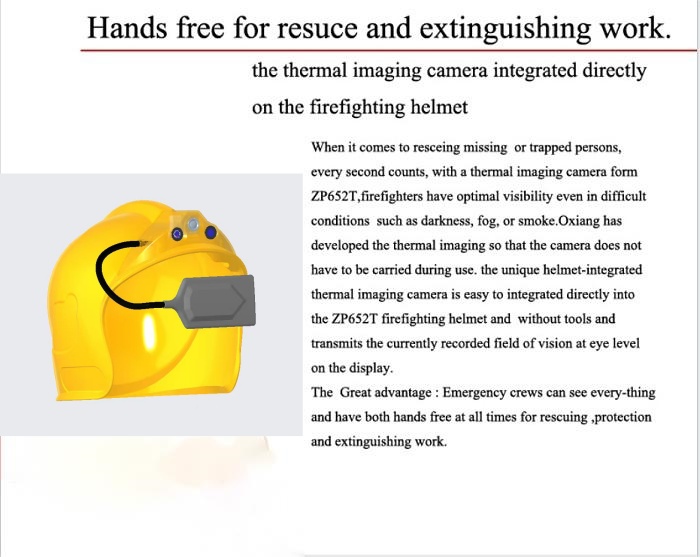

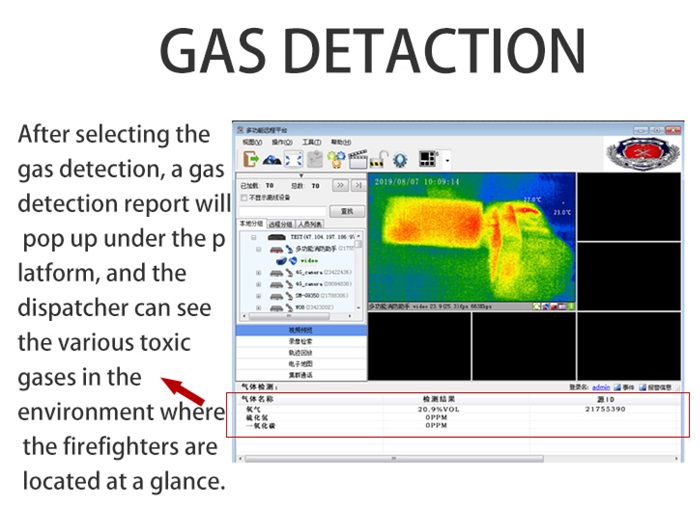

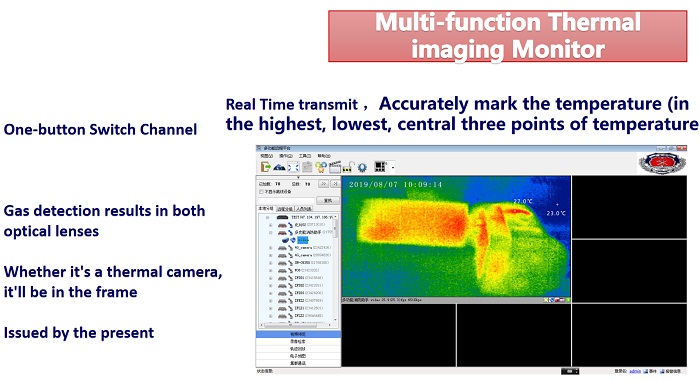

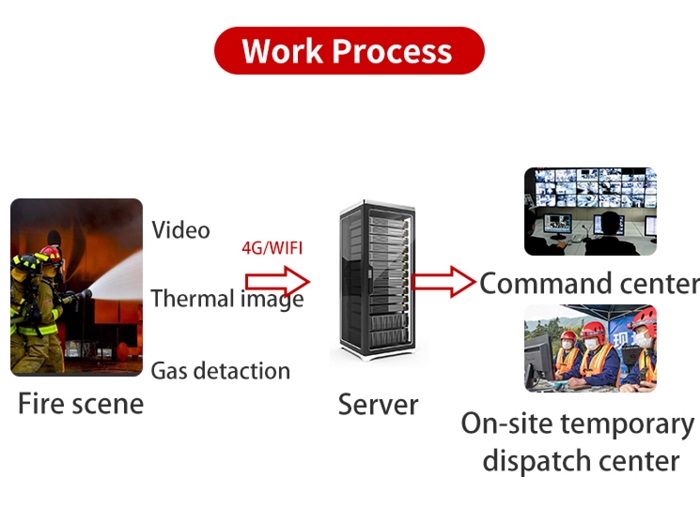

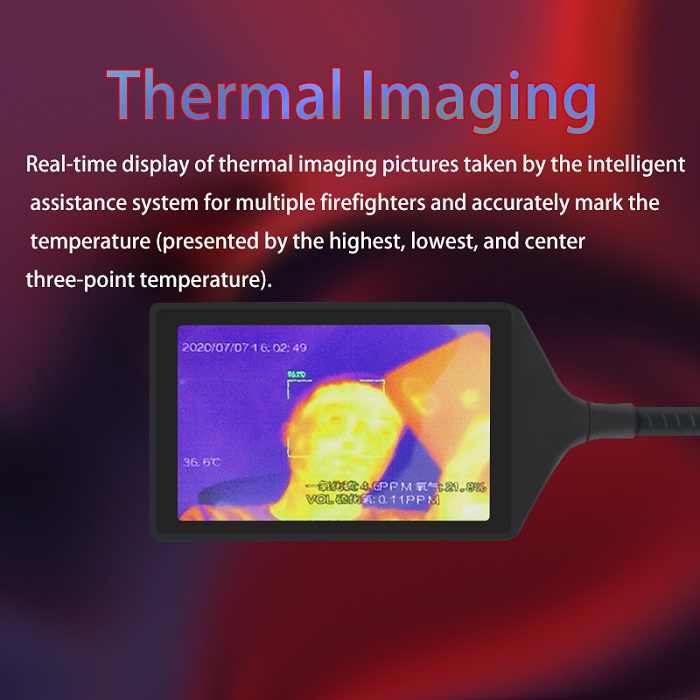

ZP653T intelligent fire helmet designed by oxiang. It integrates functions such as infrared thermal imaging, 1080P high-definition imaging, multi gas detection, bidirectional voice call, global positioning module, 4G transmission, and is comfortable and reliable to wear, enabling firefighters to easily empower. During use, real-time gas data and image information on site will be transmitted to the backend, and the backend will set the gas peak alarm value. Once the harmful gas reaches the level of harm, an alarm will be triggered immediately to monitor the safety status of each person on site. Real time display of thermal imaging and gas concentration. When the set harmful gas hazard value is reached, an alarm will be issued, and data will be transmitted to the rear command center through the network. The command center personnel will make correct judgments and commands for emergency situations. Ensuring the safety of rescue personnel, reducing people’s losses, and playing a role in safeguarding, effectively commanding, and reducing disasters for fire rescue.
