System

Name

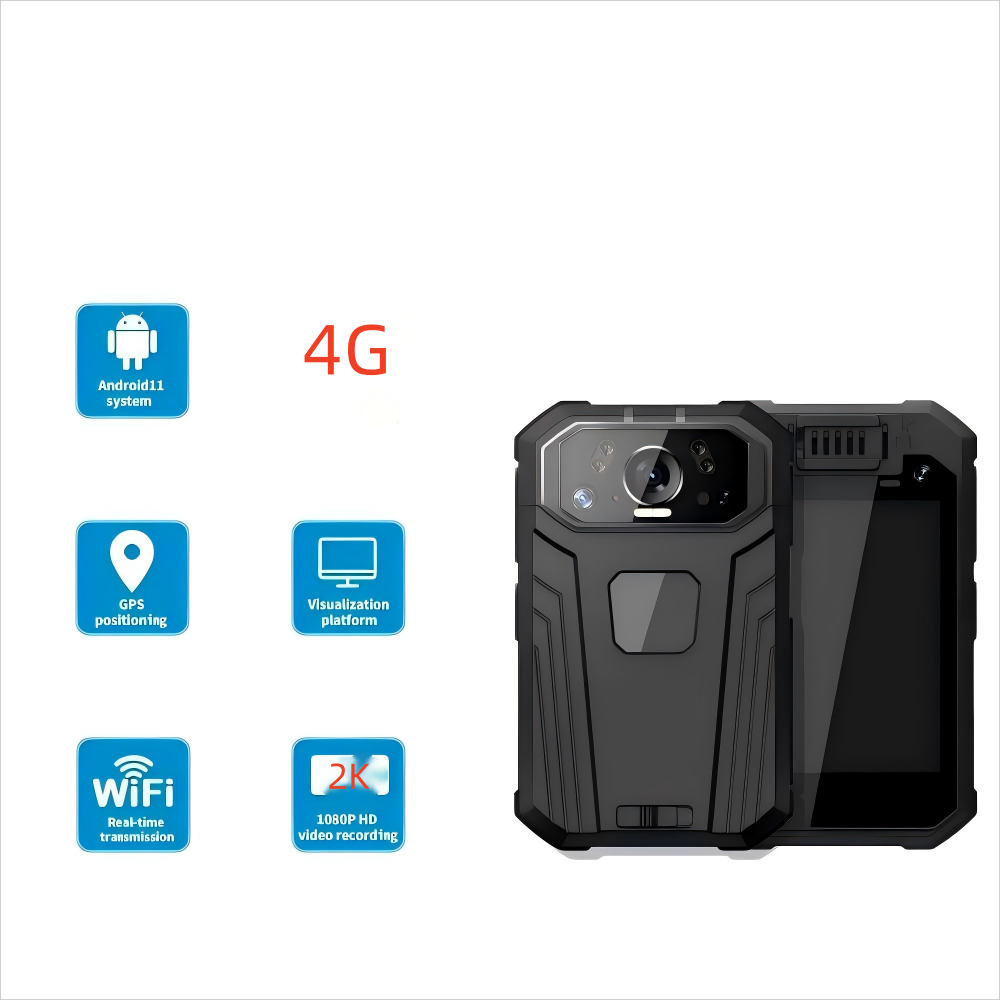

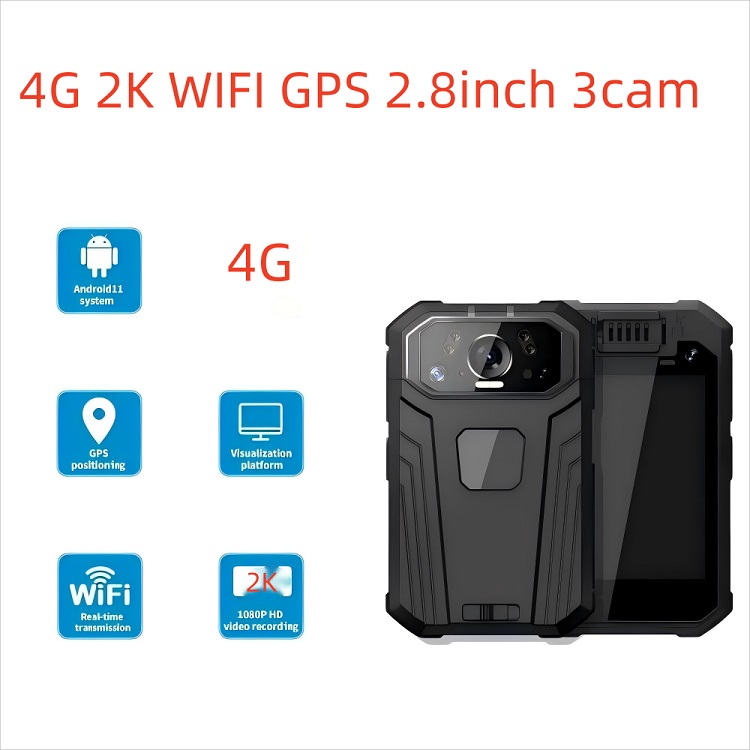

4G Body Worn Camera

SOC chip

MT6769 8 Cores CPU, 64 bit, 2GHz. 12nm

System

Android 12.0

ROM/RAM

Standard 3GB+32GB, 4GB+64GB/4GB+256GB for optional

Camera

Photo resolution

64 Megapixel

Cmos sensor

258/OV4688

Wide angle

140 degrees

Camera lens

Scratch-resistant

Photo format

JPEG

Main camera

13MP

Secondary Camera

20MP (Night vision camera)

Rear camera

2MP

Video

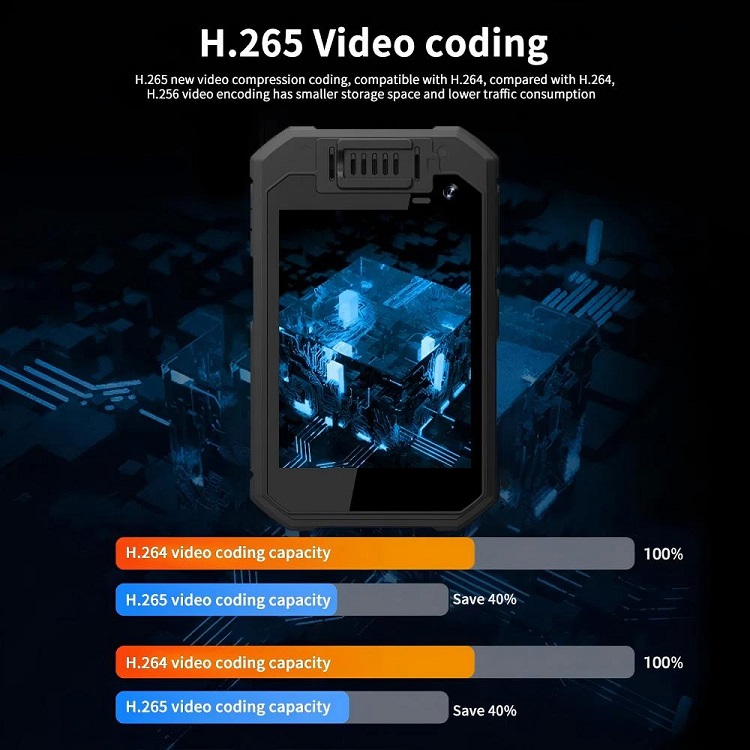

Video compression/ format

H.265/H.264, MP4

Video resolution

2560x1440P@30fps, 1920x1080P@30fps, 1280x720P@30fps

Network video resolution

2560x1440P, 1920x1080P, 1280x720P, 640x480P

Dual-stream

support(2 video streams for local record and remote view

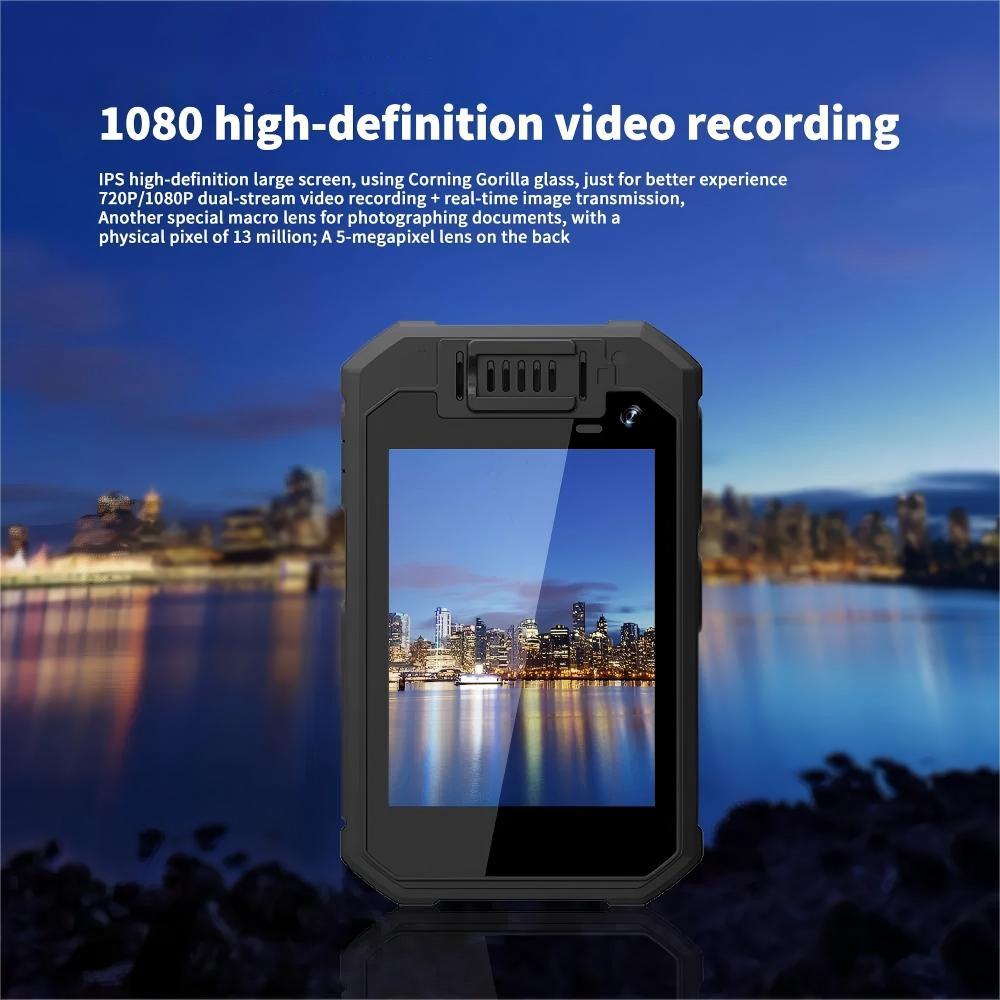

Display

2.8 inches HD Touchscreen(480*640)

One-touch recording

Support

Audio

Audio format

AAC/OPUS，MP3

Audio sampling rate

48kHz

Audio compression rate

128kbps

Network

Frequency band

GSM:B2/3/5/8;

WCDMA:B1/5/8;

LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28A

LTE TDD: B34/B38/B39/B40/B41

Sim-card slot

Built-in, Nano-Sim Card

WiFi

2.4G/5.8G Wifi 5 ac, support IEEE802.11 ac/a/b/g/n

Position

Built-in, GPS/BDS/GLONASS

G/M-Sensor

Built-in

BT

Bluetooth 5.0 LE

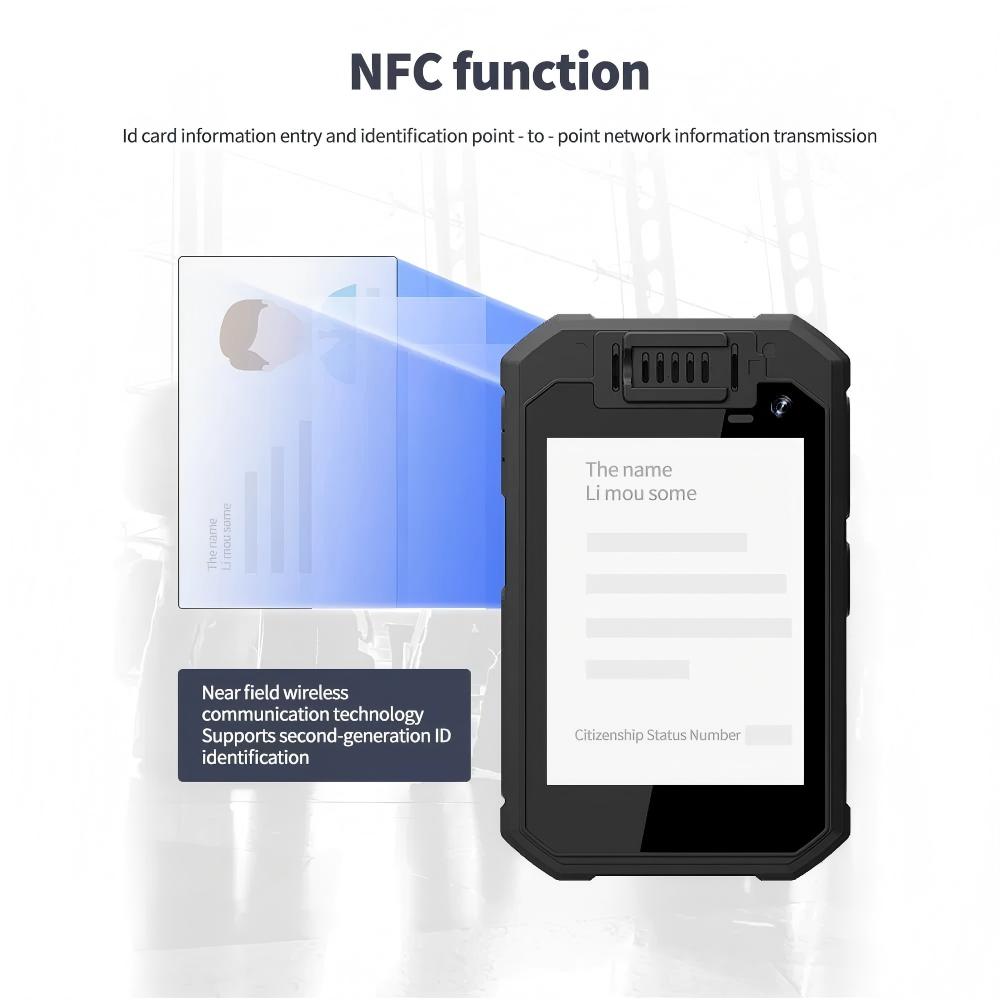

NFC

Support (optional)

Night vision

Night vision

1 white LED, 4 IR LED;

Can recognize face within 3 meters and human body contours within 10 meters

White balance

Auto white balance

Red and blue flashing lights

Built-in

Laser light

Support(optional)

Interface

Shortcut button

PTT/Power/Video/Audio/ Snapshot/SOS/M key

SIM

Nano-Sim card slot

TF-Card

1 x TF card

Type-C

1 x Type-C

Fingerprint recognition

Optional

Battery

Type

Removable

Capacity

3400mAh replaceable battery, 10 hours continuous recording

Charging time

Fast charging 5V/2A, charging time is less than or equal to 3 hours

Continuous electricity system

Built-in a small battery, battery replacement and continuous record

Voltage

3.8V

Discharge voltage

3V

Charging voltage

4.35V

Microphone

2 x MIC

Audio Amplifier

1.5W

General

OTG

Support

Storage capacity

EMMC/TF-card 64GB(up to 512GB)

Watermark

OSD

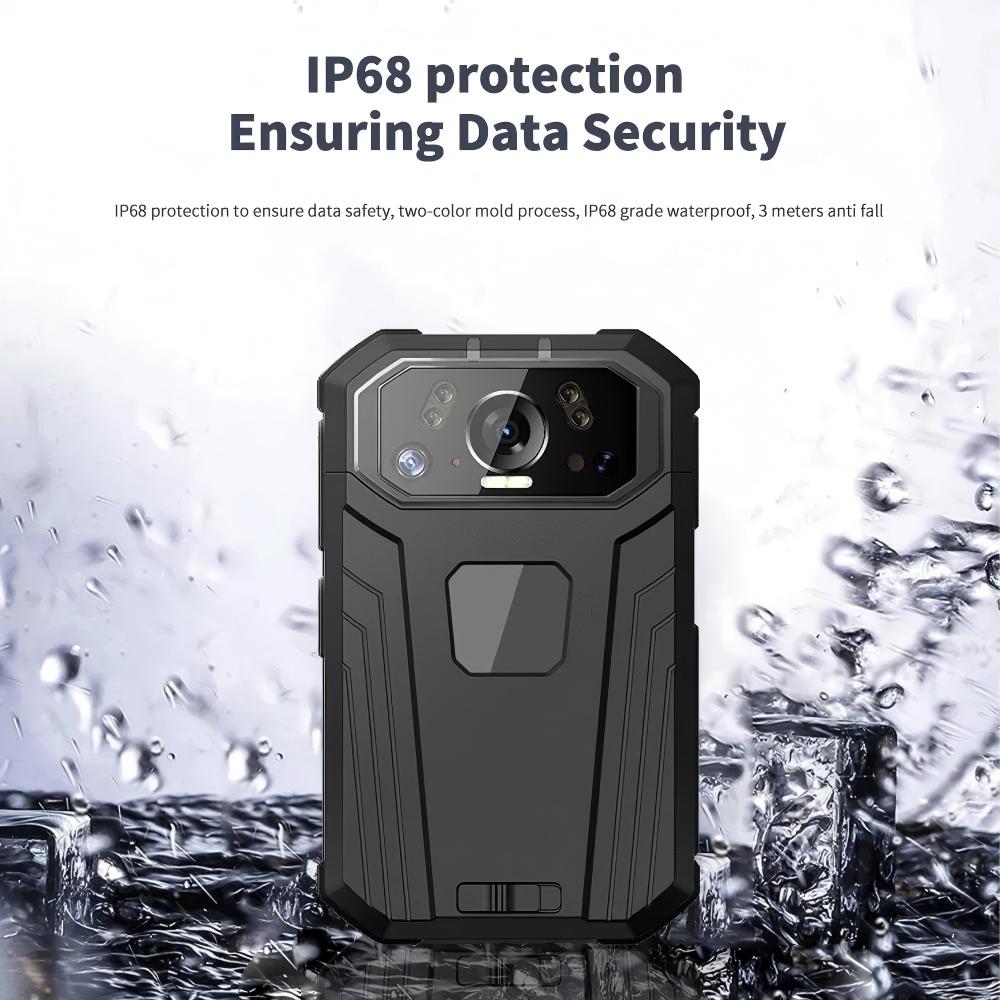

IP grade

IP68

Drop test

2 meters

Weight

177g

Dimensions

95.7mm × 59.3mm ×27.3mm

Working temperature

-20℃～+55℃

Working humidity

40％--90％
