OX-ZF41G 4G 2K Badge Recorder-OUXIANG INTERNATIONAL LIMITED

Brand OXIANG
Model OX-ZF41G
Description
4G Body Worn Camera,Body Camer,Bolice Body Camera,Police DVR,Body Camera,Police Camera,Polic Body ca...

Detail

4G 2K WIFI GPS Badge Recorder

1.Android 12 system, MT6769 8 Cores CPU 64 bit, 2GHz. 12nm;

2.eMMc:2G + 16G(4+64/4+256 for optional)

3.H.265/H.264 Encoding compression , support dual stream;

4.Support 1440P, 1080P, 720P and other resolutions;

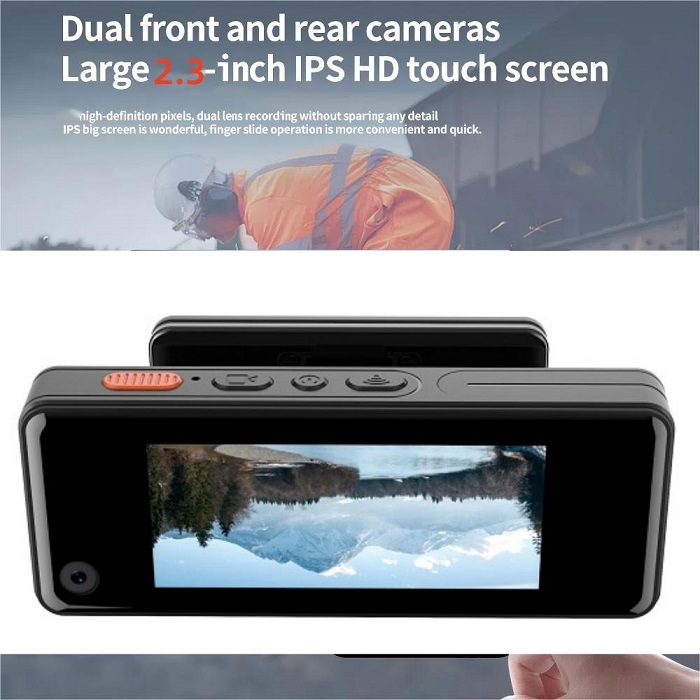

5. 2.3-inch HD IPS touch screen;

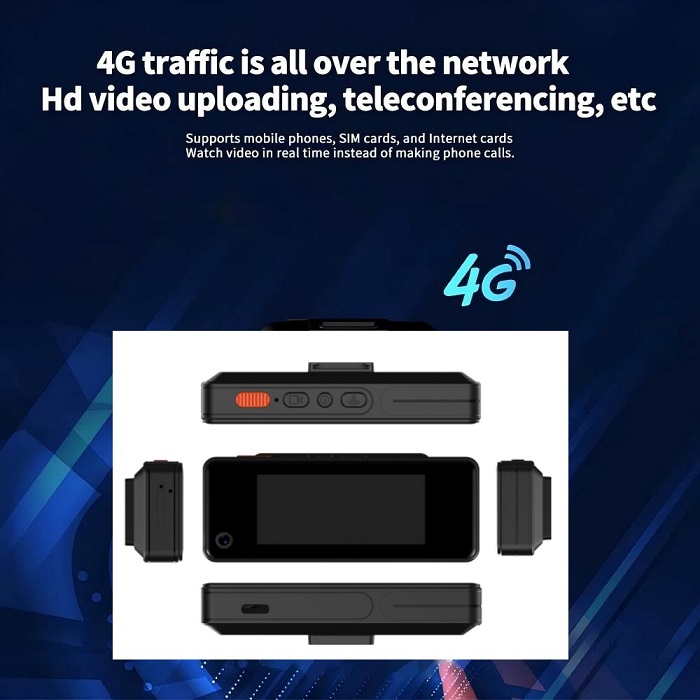

6.Built-in 4G, WIFI, BT communication, GPS or Beidou positioning;

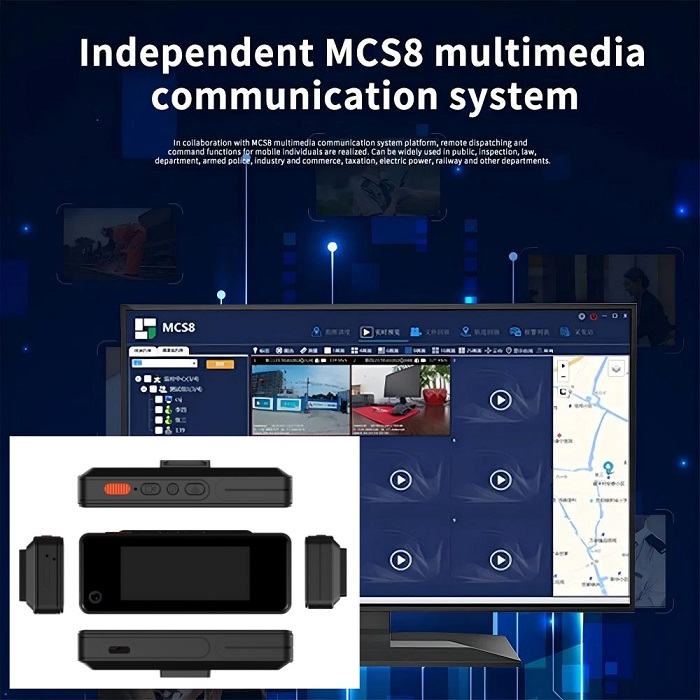

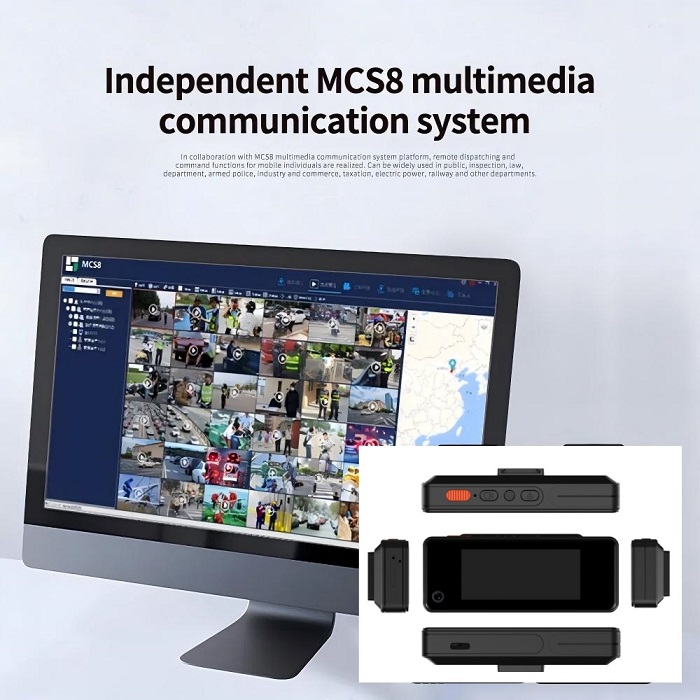

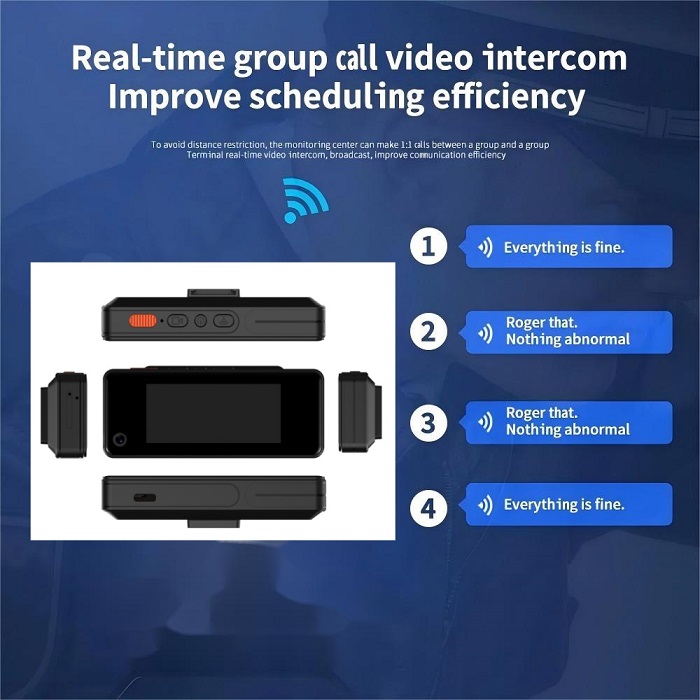

7.Support cluster voice dispatch, video call, file upload, central storage, etc.;

8.IP67 protection level, 60g light weight;

9.Single battery 1450mAh, can record for 5.5 hours (1080P/30FPS);

10.TF card：Max support 512GB (With Standard 64GB TF Card)

11.WiFi：2.4G/5.8G Wifi 5 ac, support IEEE802.11 ac/a/b/g/n

12. 4G ：LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28A；LTE TDD: B34/B38/B39/B40/B41

13.Secondary development: Provide SDK and other secondary development interfaces;

14.Size/Weight:87.2*33.4*16mm/60g

v Specifications

Hardware specification	Model	ZF41G
	Operation system	Android 12.0
	Main Chip	MT6769 8 Cores CPU 64 bit, 2GHz. 12nm
	eMMc	2G + 16G eMMC (4+64/4+256 for optional)
Main camera	Pixels	4MP, Wide angle 100°
	Video Resolution	2560×1440/30fps 1920×1080/30fps 1280×720/30fps
	Video Format	MP4
	Video Compression	H.264/H.265
	Dual stream	Support hardcoded dual stream
	Photo Format	JPG
Audio parameter	Audio format	AAC/OPUS，MP3
	Audio sampling rate	48kHz
	Audio compression rate	128kbps
Network parameter	Bluetooth	Built-in

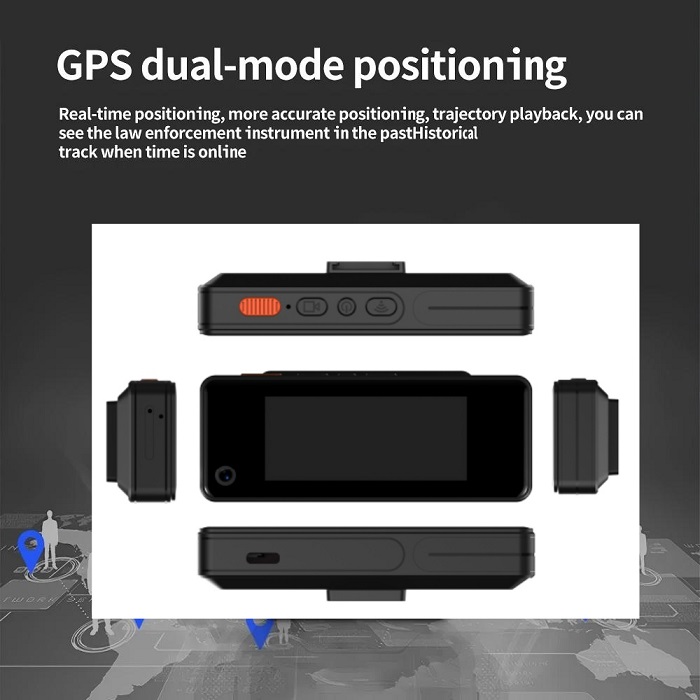

	Position	Support GPS/BDS/GLONASS(optional)
	WiFi	2.4G/5.8G Wifi 5 ac, support IEEE802.11 ac/a/b/g/n
	4G	LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28A
		LTE TDD: B34/B38/B39/B40/B41
		WCDMA: B1/B5/B8
Others	Display	2.3 inches HD touchscreen(480*200)
	SIM card	Nano card
	TF card	Built-in (Removeable)
	USB	Type-C
	Side key	Power/Video/PTT/M key
	Battery capacity	1450mAh
Environmental condition	Working temperature	-30℃～+55℃
	Working humidity	40%-90%
	Storage temperature	-40℃～+60℃
	Wearing method	Pin, Magnetic clip
	IP grade	IP67
	Drop test	2M
Dimensions		87.2 x 33.4 x 16mm
Weight		60g
