OX-ZP407G 4G 2K Police Body Camera
- Brand OXIANG
- Model OX-ZP407G
- Description
4G Body Worn Camera,Body Camer,Bolice Body Camera,Police DVR,Body Camera,Police Camera,Polic Body ca...

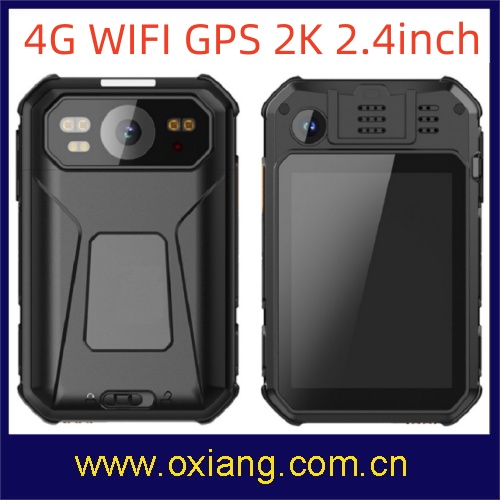

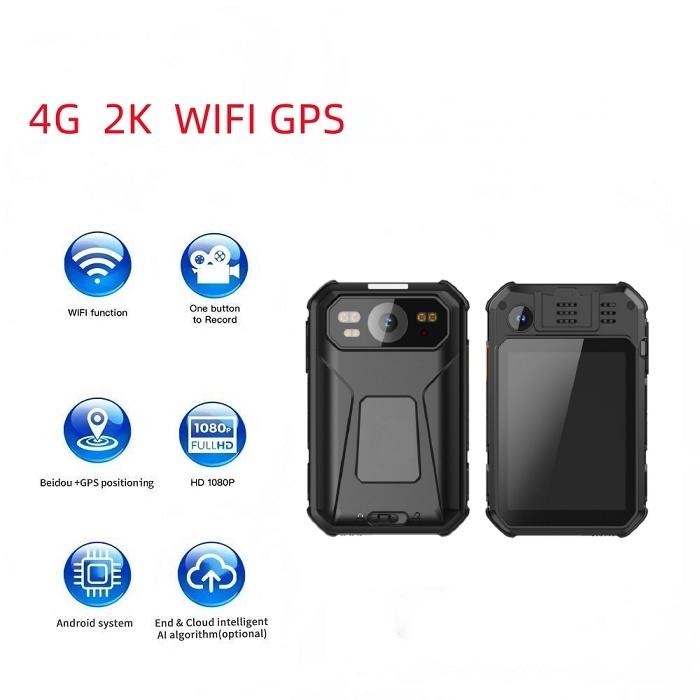

4G 2K WIFI GPS 2.4inch
v Features
High Level Protection
-IP67, adaptive to various environments
-2 meters drop protection
Excellent Video Transmission

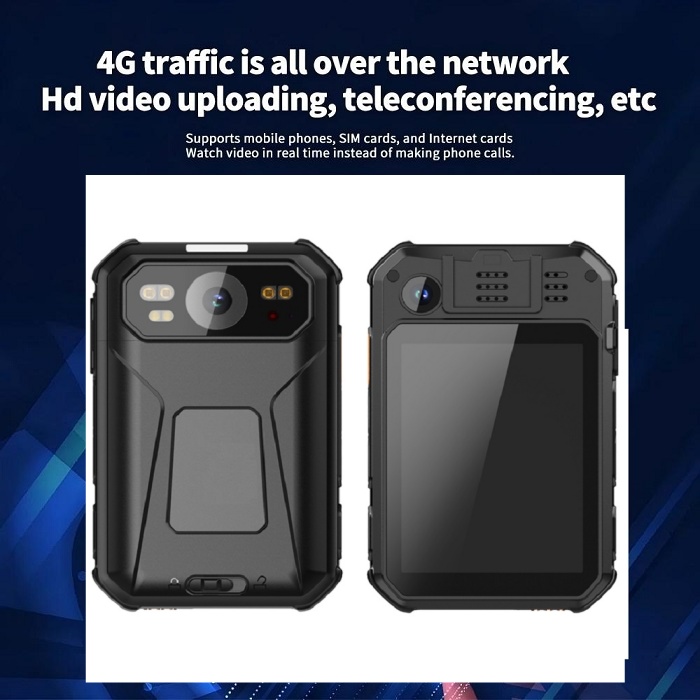

-4G / Wi-Fi transmission, improves the video stream continuity under unstable network conditions
-H.264 / H.265 video compression, saves up to 50% bandwidth and storage
High Quality Image
-Night view with LED and IR
-High definition 2560*1440p@30fps
Recognition Functions
-Support face recognition(optional)
-Built-in face comparison algorithm, offline alarm
Abundant Functions and Features
-2.4” IPS touchscreen display
-Various shortcut button, additional customized function button

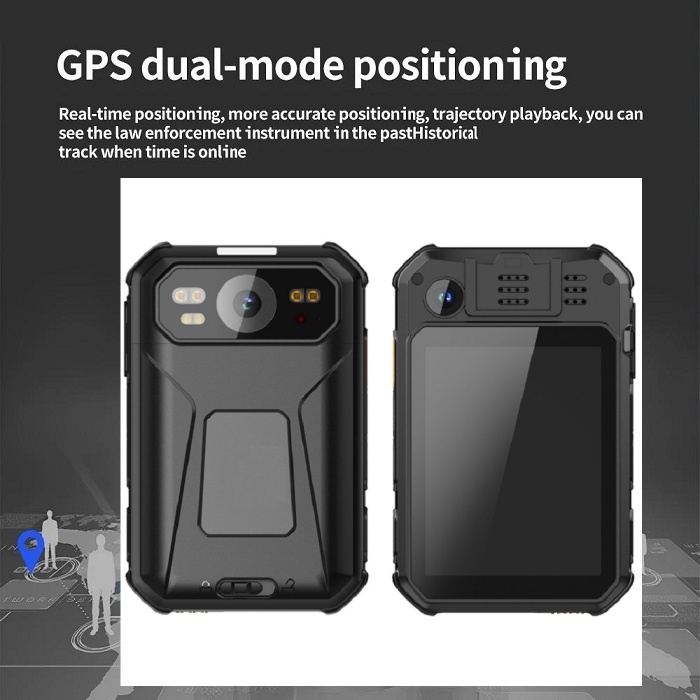

-Support location function by GPS, GLONASS
-Support external memory
Multimedia function:

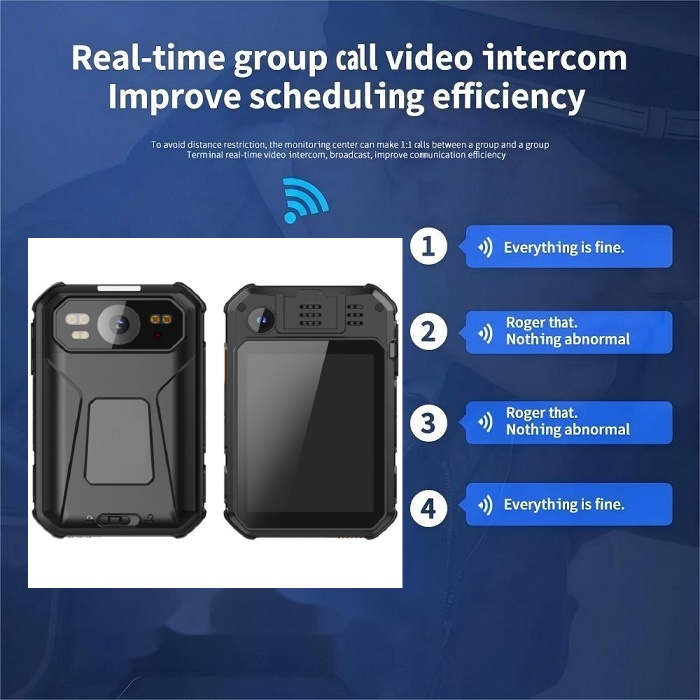

-Support cluster PTT intercom
-Support functions such as video recording, QR code scanning, TTS, etc
-Support file upload to cloud servers and support breakpoint resume function
v Specifications
Model |
OX-ZP407G |
|
Operation System |
Operation System |

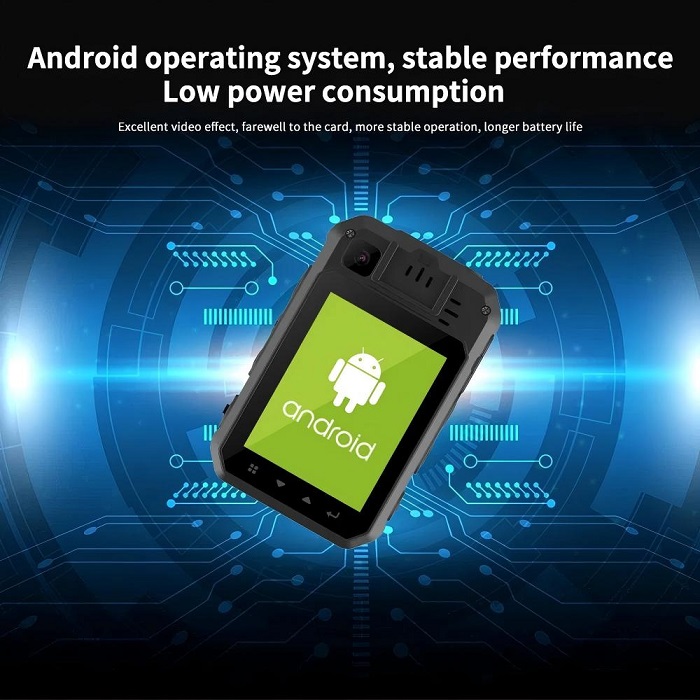

Android 12.0 |
CPU |
CPU |
MT6769 8 Cores CPU 64 bit, 2.0GHz. |
Memory |
RAM+ROM |
Standard 2GB+16GB |
Main Camera Lens |
Image Sensor |
1/3" progressive scan CMOS |
Max. Recording Resolution |
2560 × 1440 |
|
Day & Night |
Switch IR cut filter automatically |
|
FOV |
Horizontal FOV: 108°, Vertical FOV: 67°, Diagonal FOV: 138° |
|
TV-Distortion |
<18.5% |
|
Focal Length |
3.3 mm fixed lens |
|
Aperture |
2.6 |
|
Lens |
Rear Camera Lens |
2MP(optional) |
Video |
Video Compression |
H.264, H.265 |
Main Stream |
2560×1440/30fps，1920×1080/30fps，1280×720/30fps，640×480/30fps |
|
Sub-Stream |
2560×1440/30fps，1920×1080/30fps，1280×720/30fps，640×480/30fps |
|
Video Format |
MP4, PS |
|
Pre-record & Post-record |
Pre-record: 60/10/5/3 s,(Optional) |
|
Post-record: 60/10/5/3 s(Optional) |
||
Image |
Resolution |
64M, 48M, 32M, 16M, 8M, 4M |
Image Format |
JPEG |
|
Audio |
Audio Compression for Video Recording |
AAC, G711 |
Audio Compression for Audio Recording |
MP3,AMR,WAE |
|
Audio Compression for Group Intercom |
OPUS,G711 |
|
Audio Bit Rate |
AMR (12 kbps), AAC (128 kbps), MP3 (128 kbps), G711 (192 kbps),OPUS(13 kbps) |
|
Image Stabilization Algorithm |
EIS |
Optional |
Screen |
Screen Size |
2.4" |
Touchscreen |
Support |
|
Display Resolution |
640 × 480 |
|
Screen Brightness |
Typical value: 350 cd/m² |
|
IR |
IR Range |
Up to 10 m, Illumination range greater than 90% |
Network Parameters |
Wireless Network |
2.4G/5.8G Wifi 5 ac, support IEEE802.11 ac/a/b/g/n |
Bluetooth |
BT5.0 |
|
Positioning Mode |
GPS |
|
4G |
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28A |
|
LTE TDD: B34/B38/B39/B40/B41 |
||
WCDMA：B1/B5/B8 |
||
Others Parameters |
NFC |
Optional |
Gyroscope |
Built in |
|
G-Sensor |
Built in |
|
White Light |
Built in |
|
Laser Light |
Optional |
|
Red/Blue Flashing Light |
Built in |
|
Network Protocol |
Protocol |

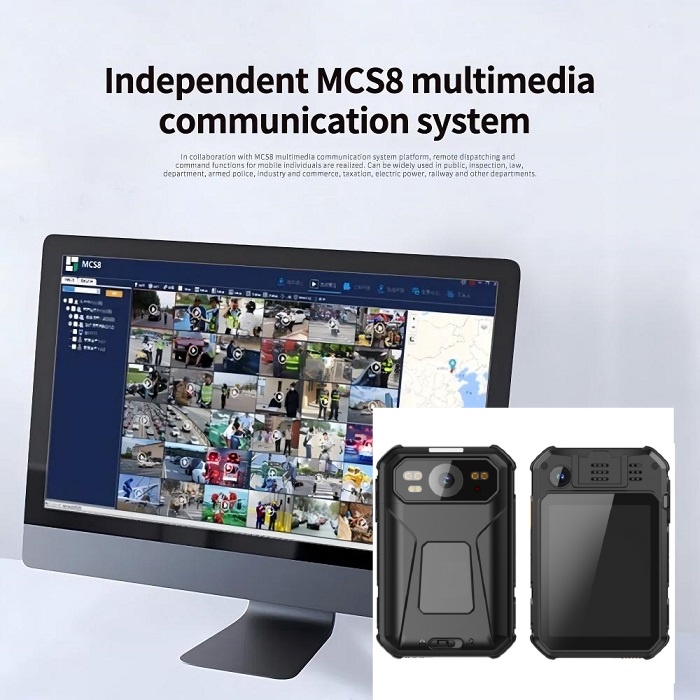

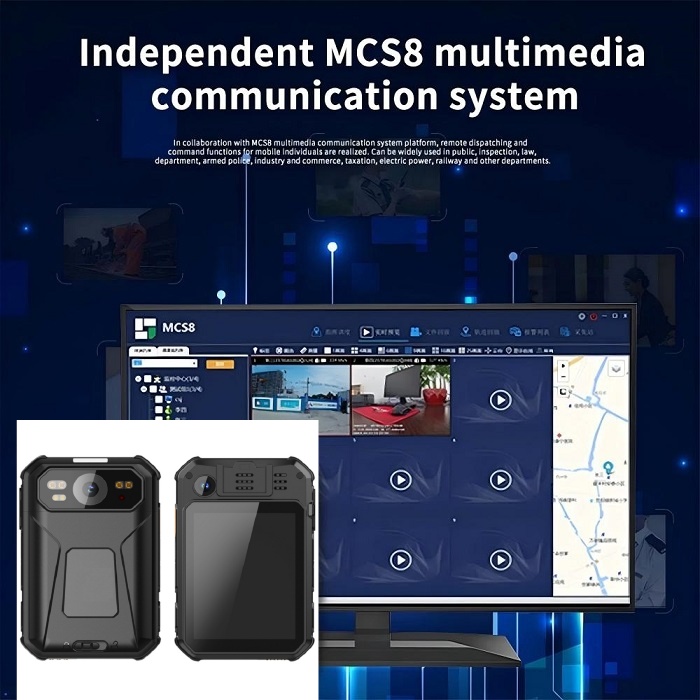

RTSP,Onvif, MCS8, FTP |
API |
SDK |
|
Security |
Encryption |
AES256 |
Watermark |
Support |
|
Software Functions |
Smart Functions |
Face Picture Capture(Optional) |
Face Picture Recognition(Optional) |
||
License Plate Recognition(Optional) |
||
Basic Event |
SOS alarm |
|
Group Intercom |
Support |
|
Voice Broadcast |
Support TTS voice broadcast(Optional) |
|
File Upload |
Support OSS object storage and file upload |
|
Video Intercom |
Support video call between multiple devices(Optional) |
|
Voice Call |
Support voice call between multiple devices(Optional) |
|
Message Delivery |
Support platform-to-device messaging of messages, files, and other content(Optional) |
|
Software Upgrade |
Support OTA firmware or app upgrades |
|
External Camera |
Support up to 1080P USB cameras(Optional) |
|
Battery |
Battery Life |
Up to 10 h in 1080p resolution¹ |
Charging Method |
Type C/Charging Stand(optional) |
|
Embedded Sub-Battery |
60mAh |
|
Capacity |
3050mAh |
|
Battery Type |
Lithium-ion battery, removable |
|
Charging Time |
≤ 4 h |
|
General |
Power |
5 V DC, 2.0 A |
Charging Interface |
Type-C, Pogo Pin |
|
Mic |
Built-in 2 mic(s) |
|
Speaker |
1 speaker(s),max. power consumption: 1.5 W |
|
USB |
Type-C |
|
SIM Card |
1 Nano-SIM card(s) |
|
TF Card |
1 TF card, standard 64GB, 128GB/ 256GB /512GB optional |
|
Button |
PTT, Power on/off, Video recording, Audio recording, Snapshot, Event tag, Customized function |
|
Dimensions |
91.8 x 59.8 x 25.3mm |
|
Weight |
166g, 180g with clip |
|
Working Temperature |
-10℃～+55℃ |
|
Working humidity |
40%-90% |
|
Protection Level |
IP67 |
|
Anti-drop level |
2M |
|
Warranty |
Warranty |
1 year |
