Hardware specification

Model

OX-ZP405G

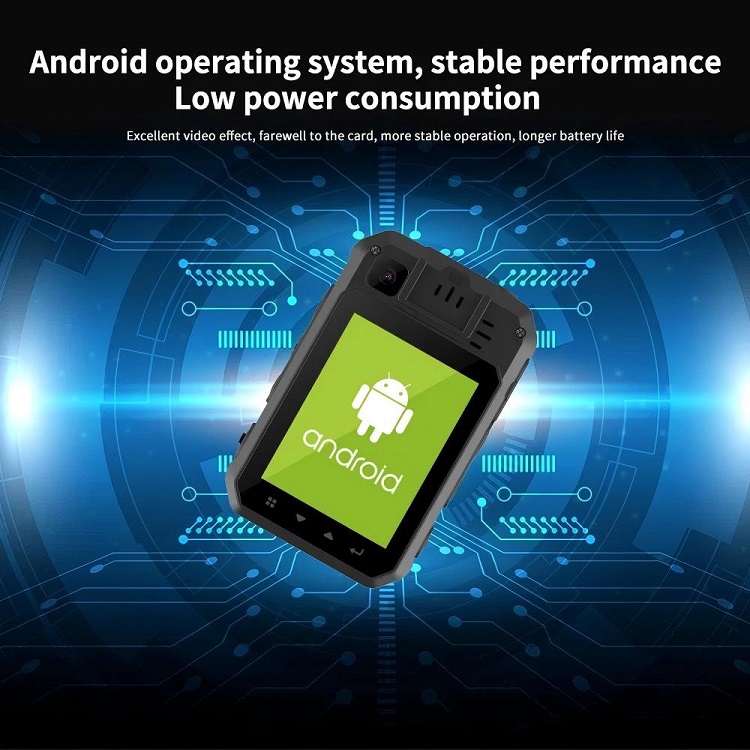

Operating system

Android 12.0

SOC chip

MT6769  8 Cores CPU (ARM Cortex-A75/A55), 64 bit,  2GHz, 12nm

Internal storage

3G + 32G eMMC(4+64/4+256 for optional)

Main Camera

Effective pixels

4-Megapixel

Video resolution

2560×1440/30fps
1920×1080/30fps
1280×720/30fps

Video format

MP4

Compression

H.264/H.265

Dual-stream

Support hard-coded dual stream

Phtoto format

JPEG, 48 Megapixel

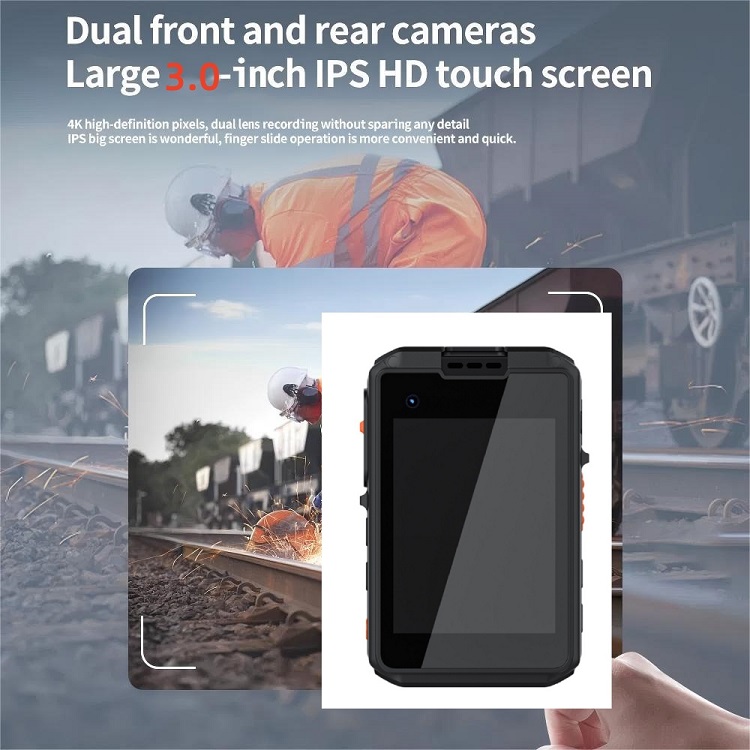

Secondary/rear camera

Secondary camera

8MP

Rear camera

2MP

Audio parameter

Audio format

AAC/OPUS, MP3

Audio sampling rate

48kHz

Audio compression rate

128kbps

Network parameter

Bluetooth

Built-in BT 5.0

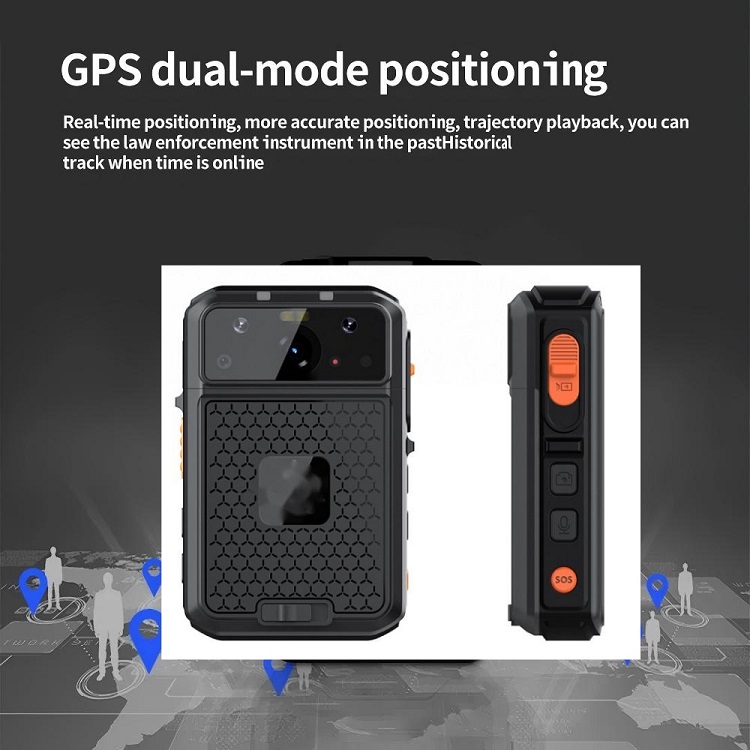

Position

Support GPS/BDS/GLONASS(optional)

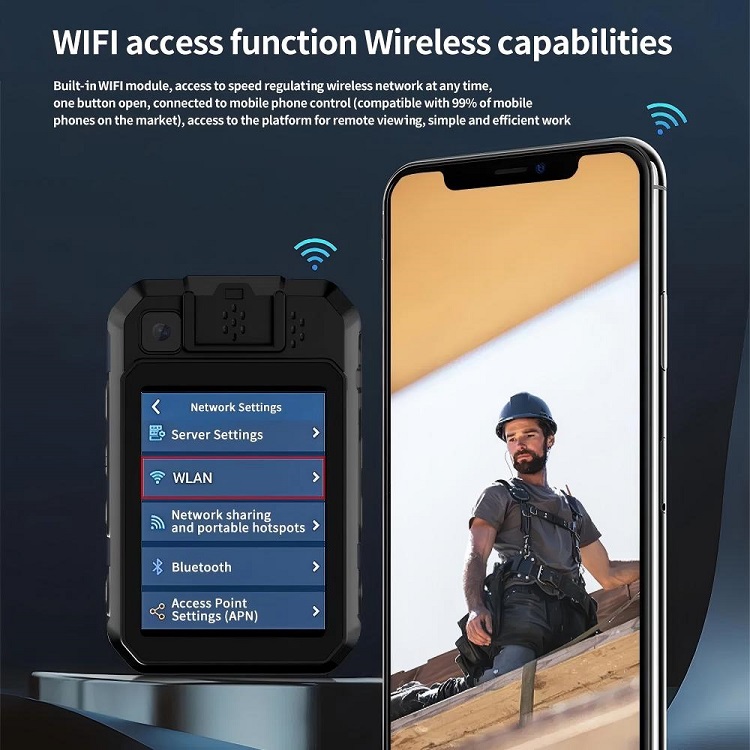

WiFi

2.4G/5.8G Wifi 5 ac, support IEEE802.11 ac/a/b/g/n

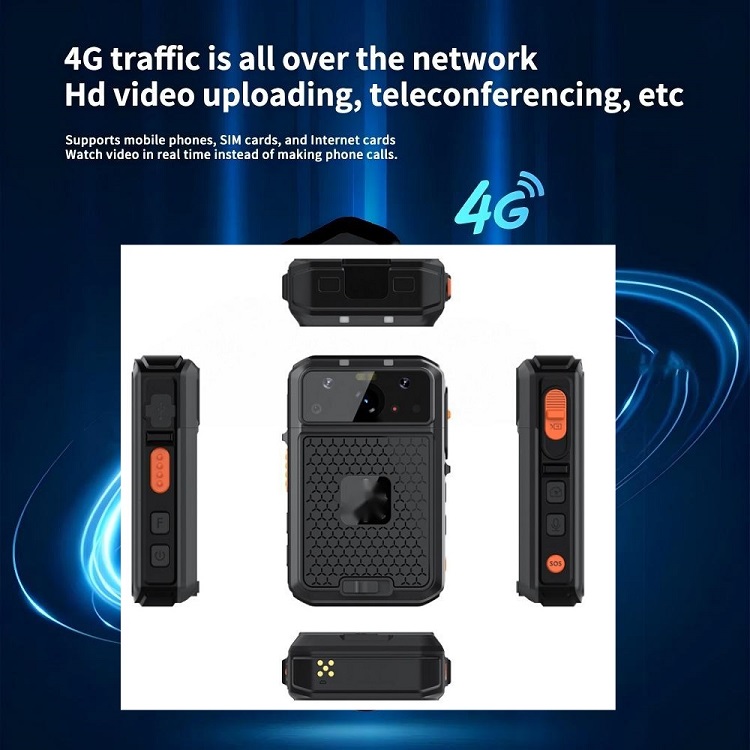

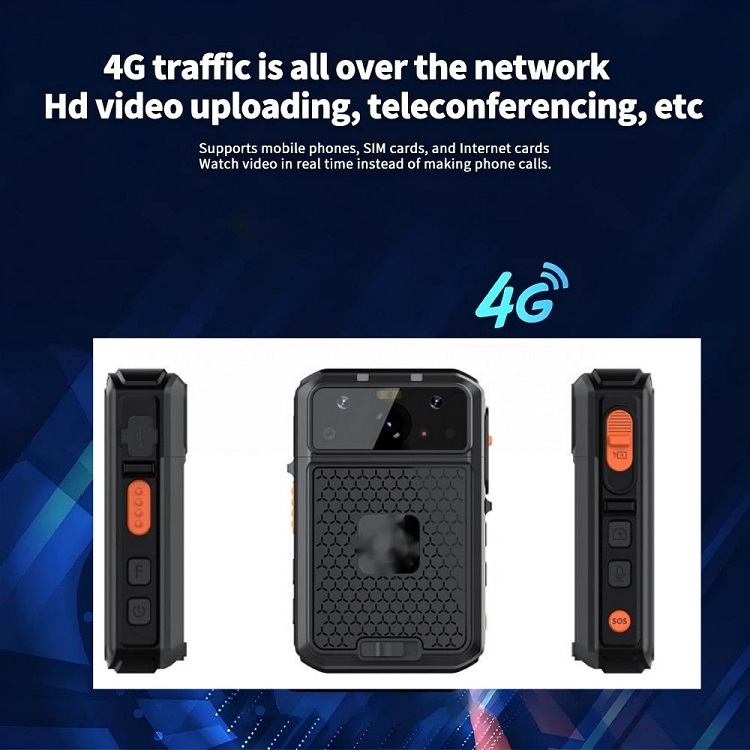

4G

LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28A

LTE TDD: B34/B38/B39/B40/B41

WCDMA：B1/B5/B8

Others

Display

3.0 inches HD touchscreen(480*854)

SIM card

Built-in, Nano card

TF card

Built-in, TF-Card/64GB( scalable to 256GB)

G-Sensor

Built-in

NFC

Support(optional)

USB

Type-C

Flash light

Built-in

Laser light

Support(optional)

Red and blue warning lights

Built-in

IR night vision

2 infrared lights, the recognition range can reach 3 meters for faces, and the detection range can reach 10 meters for human body

Voltage

3.8V

Discharge voltage

3V

Charging voltage

4.35V

Microphone

2 x MIC

Audio Amplifier

1.5W

Side key

Power/PTT/Video/Audio/ Snapshot/SOS/M keys

Battery Parameter

Battery capacity

3050mAh, removable polymer lithium battery

Continuous electricity system

Built-in small battery, supports battery replacement without power failure

Charging time

5V/2A, the battery charging time should be less than or equal to 3h

Environmental condition

High temperature working time

+55, 4h

Low temperature working time

-30, 2h

Working temperature

-20℃～+55℃

Working humidity

40%-90%

Storage temperature

-40℃～+60℃

IP grade

IP67

Drop test

2M

Dimensions

97 x 59.8 x 26.5mm

Weight

171g(camera),192g(camera+clip)
