ITEM

Parameters

System

Language

Chinese/English/Portuguese/Spanish/Russian/Vietnamese/Mongolian/Thai/Pakistani/French/Korean/Hindi

Operating system

Linux

Menu

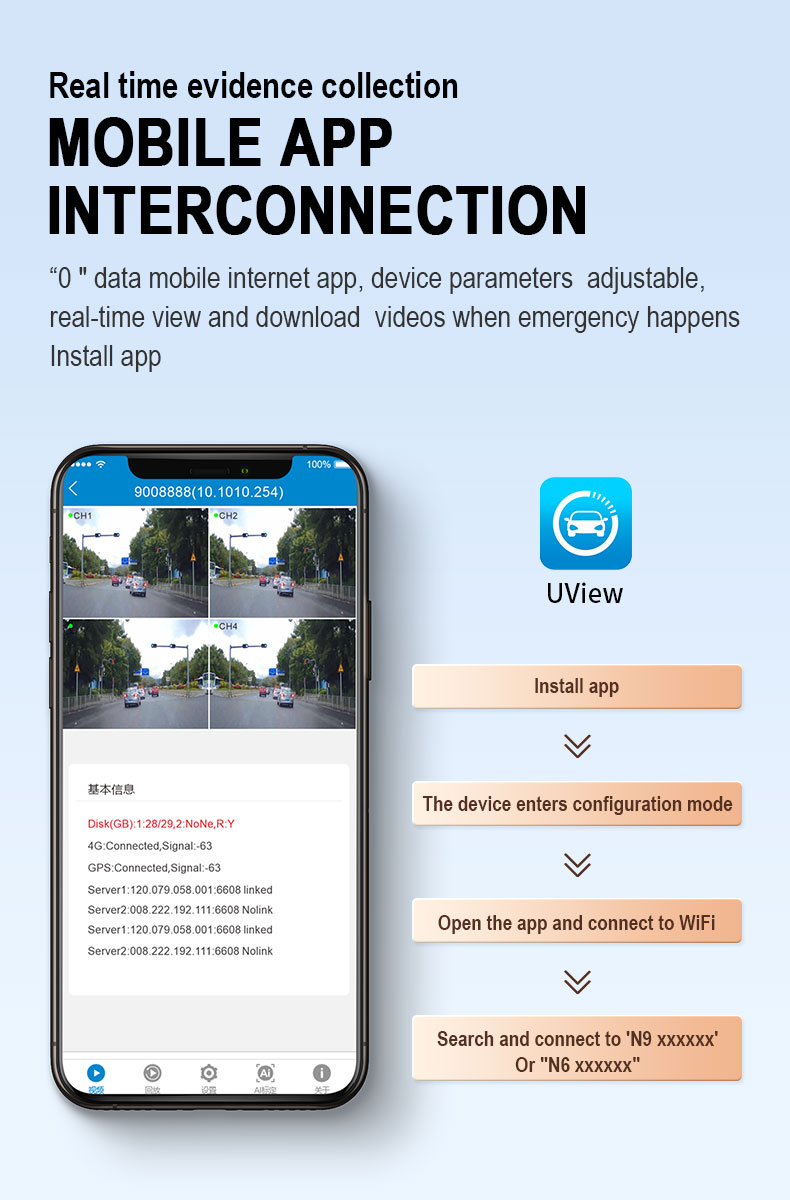

Mobile app: CMSV7, UVIEW

Processor

CPU

NOVATEK NT98528 chip, Dual Core ARM® CortexTM A9, 1.5 TOPS computing power

Memory

DDR 8Gb

Flash

2Gb

Video

Video Input

Front (built-in) 4MP, supports WDR, D:131° H:111° V:59°

Rear (built-in) 1080p, D:148° H:122° V:63°

Can pull out 2 channels of 1080P AHD camera

Video output

Optional configuration with 1 channel AV output

Format

H.264/H.265

Resolution

4MP, 1080P, 720P, D1 optional

Quality

Levels 1 to 4

Record Mode

Default boot recording, supporting ignition recording, alarm recording, etc

Audio

Audio Input

1 channel audio with built-in digital MIC

Audio output

1 channel, built-in power amplifier, built-in 3W speaker with sound chamber

Format

G. 711A

4G

Built in 4G, TDD-LTE, FDD-LTE

WiFi

Built in WiFi

GPS

Built in BD/GPS/GLONASS module

G-Sensor

Built in accelerometer

SOS alarm button

Support

Alarm In

Supports 4 alarm inputs

Alarm output

Supports 1 channel of alarm output

Power output

Supports 1 channel of 5V output and 1 channel of 12V output

Serial port

Supports 2-channel RS232. Can be connected to oil level sensors, RFID card readers, alcohol sensors, etc

CAN port

Optional configuration with 1 channel CAN

Speed sensor

Optional 1-channel speed sensor

Port

TF Card

Supports 2 TF cards, with a maximum support of 1TB per card

Upgrade

Support TF card upgrade and FTP remote automatic upgrade

USB Port

Type-c

SIM Card

Supports 1 Nano SIM card

AI algorithm

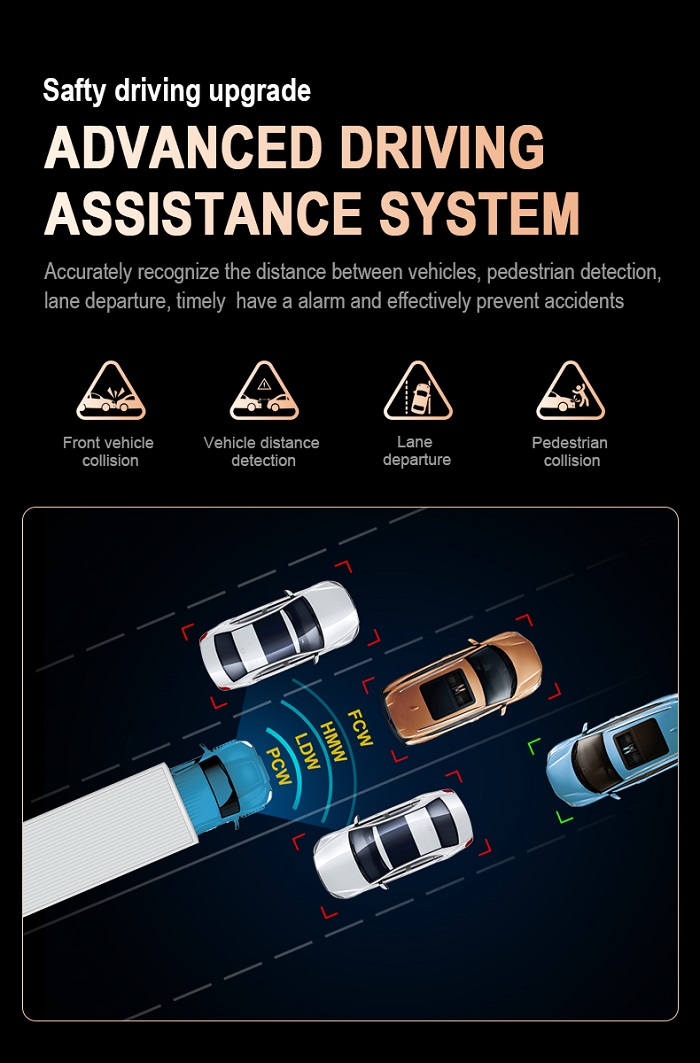

ADAS

FCW, LDW, HMW, PCW

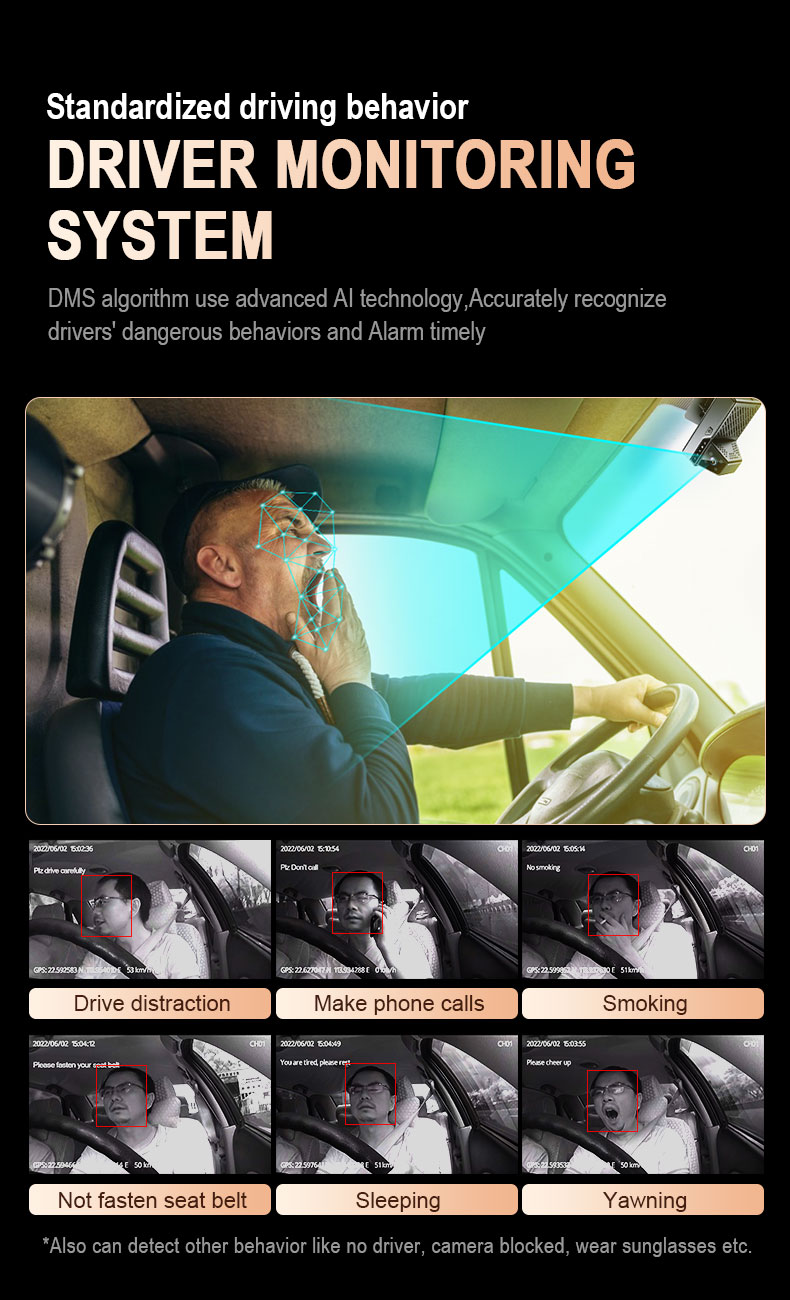

DSM

Smoking, making phone calls, yawning, dozing, distracted, driver not detected, blocking cameras, sunglasses identification, seat belts

FR

Driver facial recognition

Power

Power management

Adaptive broadband power input with protection functions such as overload, undervoltage, short circuit, and reverse connection; Supports timed on/off and delayed shutdown functions.

Input voltage

DC:+9V ~ +36V

Consumption

Normal working state ＜ 8W (without peripherals)

Environment

Temperature

-20℃ to +70℃

Humidity

20% to 80%

Management

Password access

Two level management of user passwords and administrator passwords

Platform access

JT/T808-2013, JT/T808-2019, JT/T1076-2016, JT/T1078-2016

CMSV6、Wialon、Uffizio

Dimension

114mm*65mm*69mm
