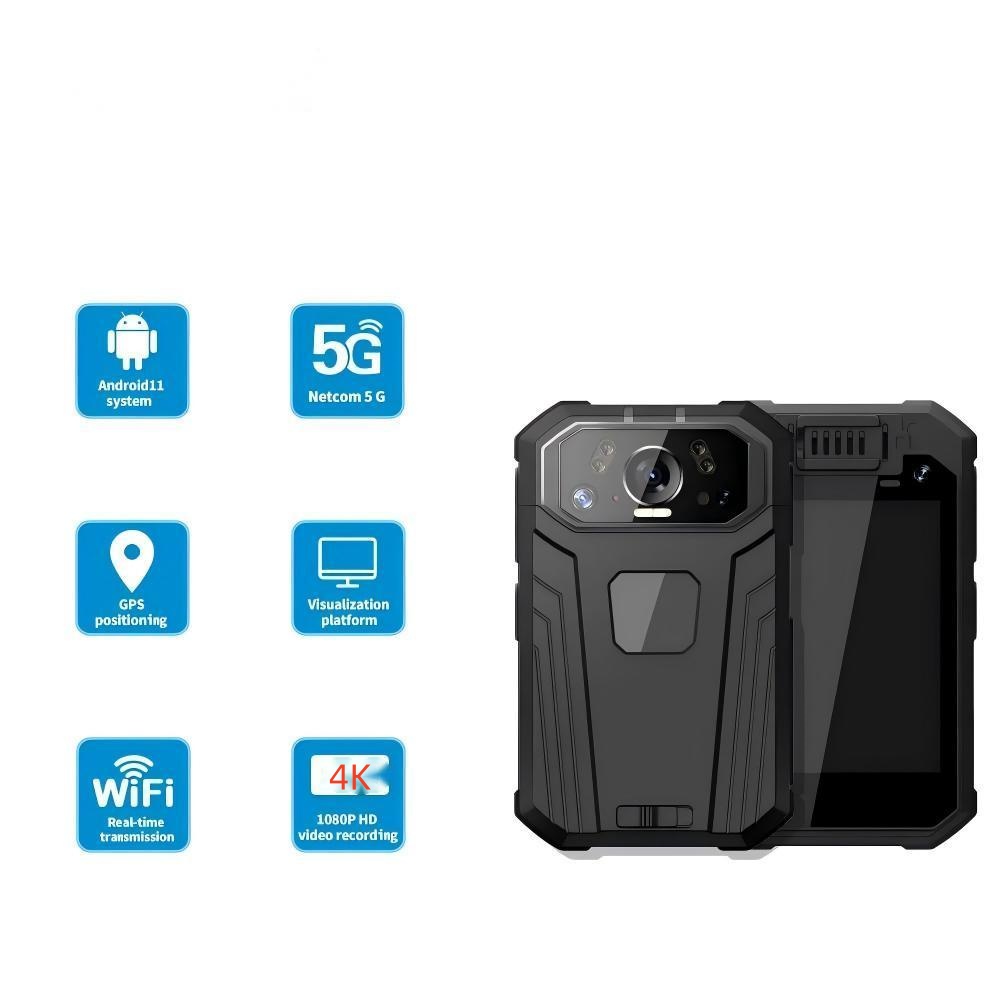

OX-ZP406-5G 4K Body Camera
- Brand OXIANG
- Model OX-ZP406-5G
- Description
5G 4G Body Worn Camera,Body Camer,Bolice Body Camera,Police DVR,Body Camera,Police Camera,Polic Body...

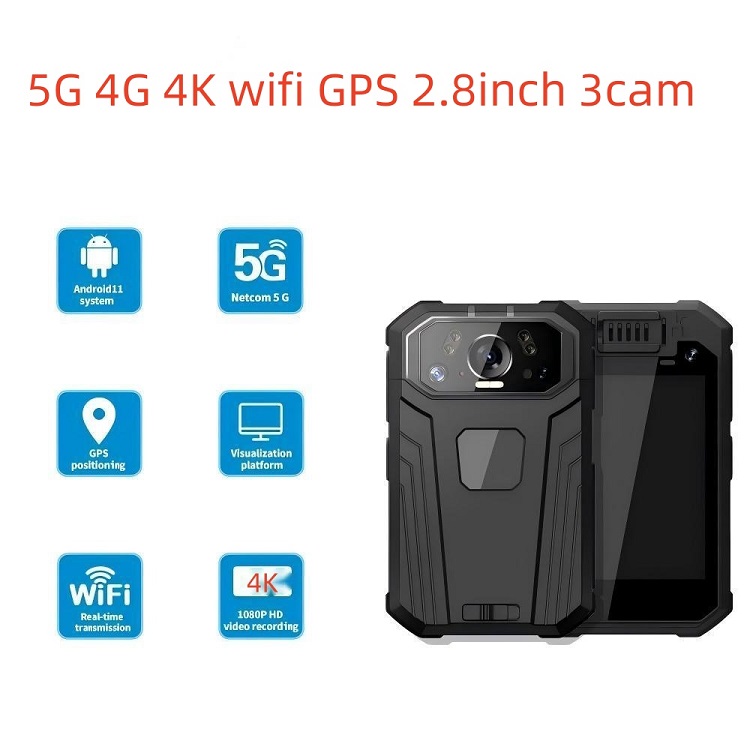

5G 4G 4K WIFI GPS 2.8 inches 3 Camera
5G Body Worn Camera
1.Android 13 system, MT6877 8 Cores CPU 64 bit, 2GHz. 12nm;
2.eMMc:4+64G（4+256G for optional)
3.H.265/H.264 Encoding compression , support dual stream;
4.Support 4K2176P, 2K1440P,1080P,720P and other resolutions;
5. 2.8 inches HD touchscreen(480*640);Built-in 3pcs Camera
6.Built-in 4G, WIFI, BT communication, GPS or Beidou positioning;

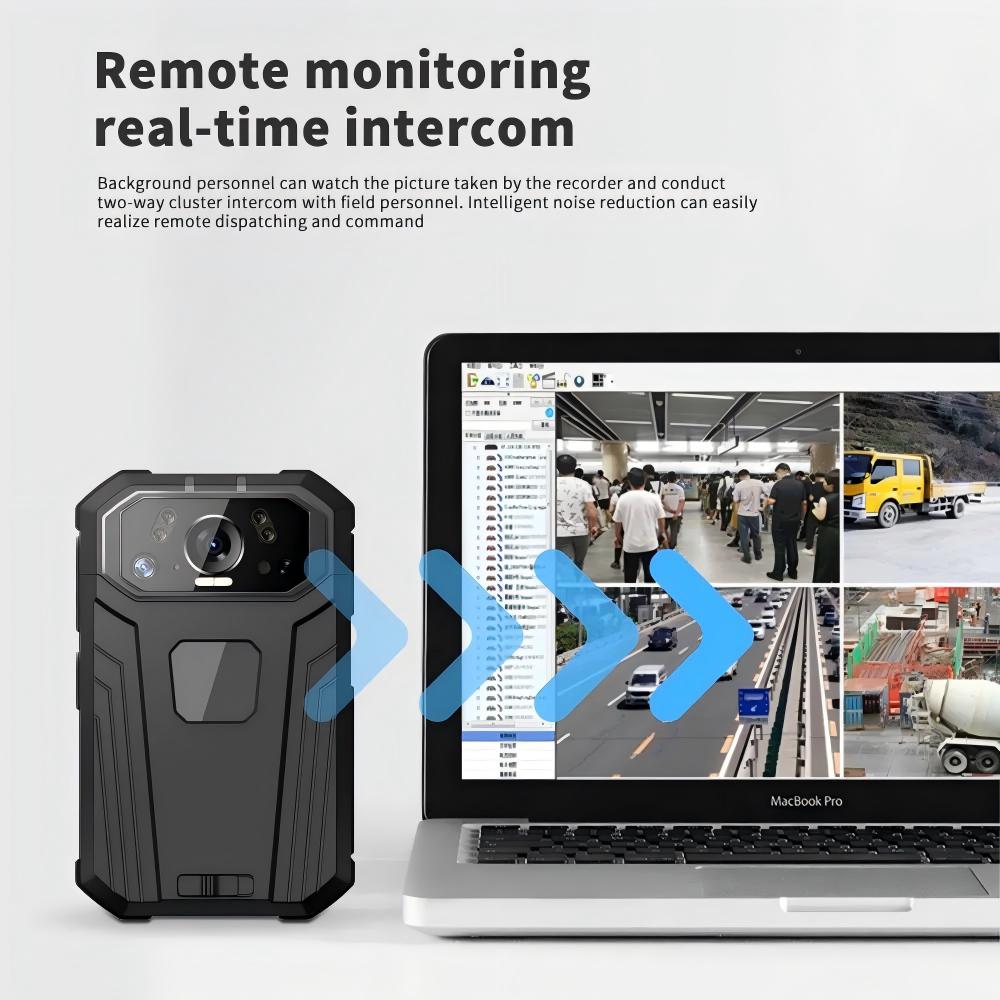

7.Support cluster voice dispatch, video call, file upload, central storage, etc.;
8.IP grade：IP67 ;
9.3400mAh removable polymer lithium battery, can record for 10 hours (1080P/30FPS);
10.TF card：Max support 512GB (With Standard 64GB TF Card)
11.WiFi：2.4G/5.8G Wifi 5 ac, support IEEE802.11 ac/a/b/g/n

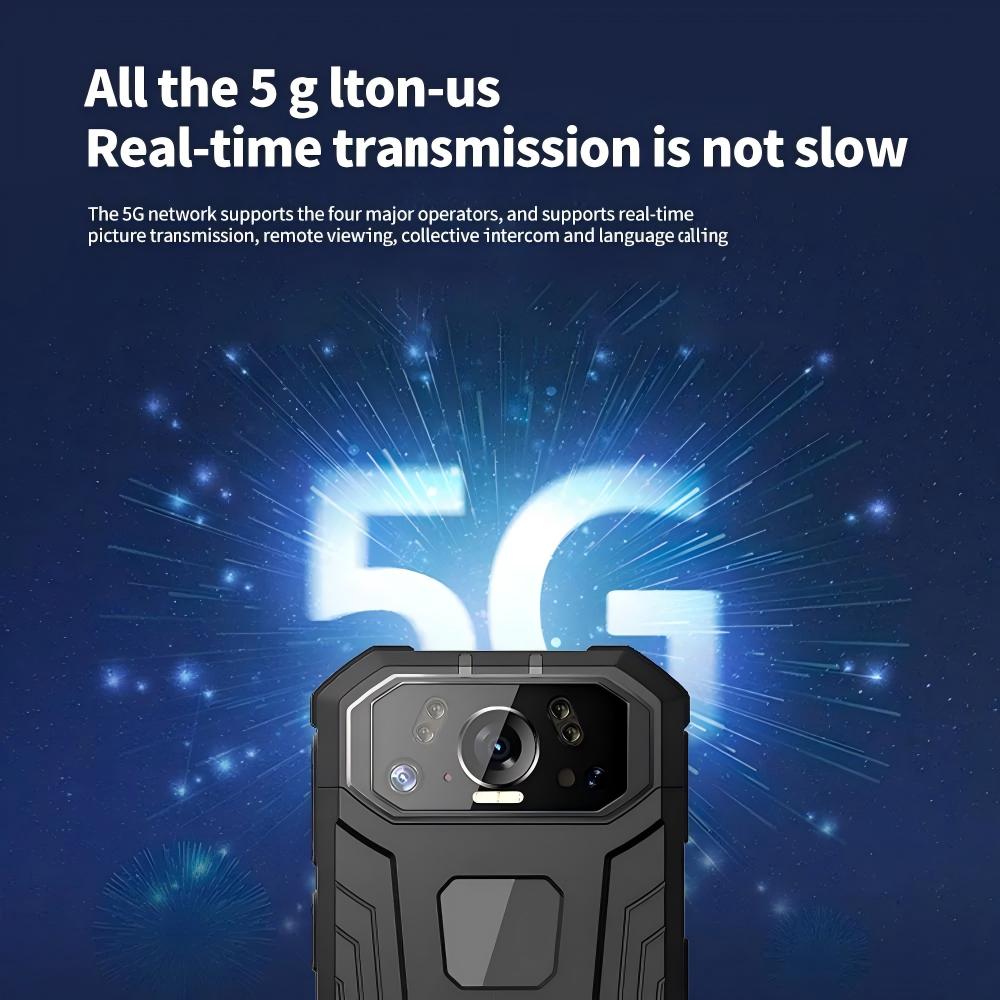

12.5G： NR：N1/N28/N77/N78/N79/N41
13.4G ：LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28A；LTE TDD: B34/B38/B39/B40/B41
14.Size/Weight:95.7mm*59.3mm*27.3mm/177g
System |
|
Name |
5G Body Worn Camera |
SOC chip |
MT6877 8 Cores CPU, 64 bit, 2GHz. 12nm |
System |
Android 13.0 |
ROM/RAM |
Standard 4GB+64GB, （4GB+256GB for optional） |
Camera |
|
Photo resolution |
64 Megapixel |
Cmos sensor |
258/OV4688 |
Wide angle |
120 degrees |
Camera lens |
Scratch-resistant |
Photo format |
JPEG |
Main camera |
13MP |
Secondary Camera |
20MP (Night vision camera) |
Rear camera |
2MP |
Video |
|

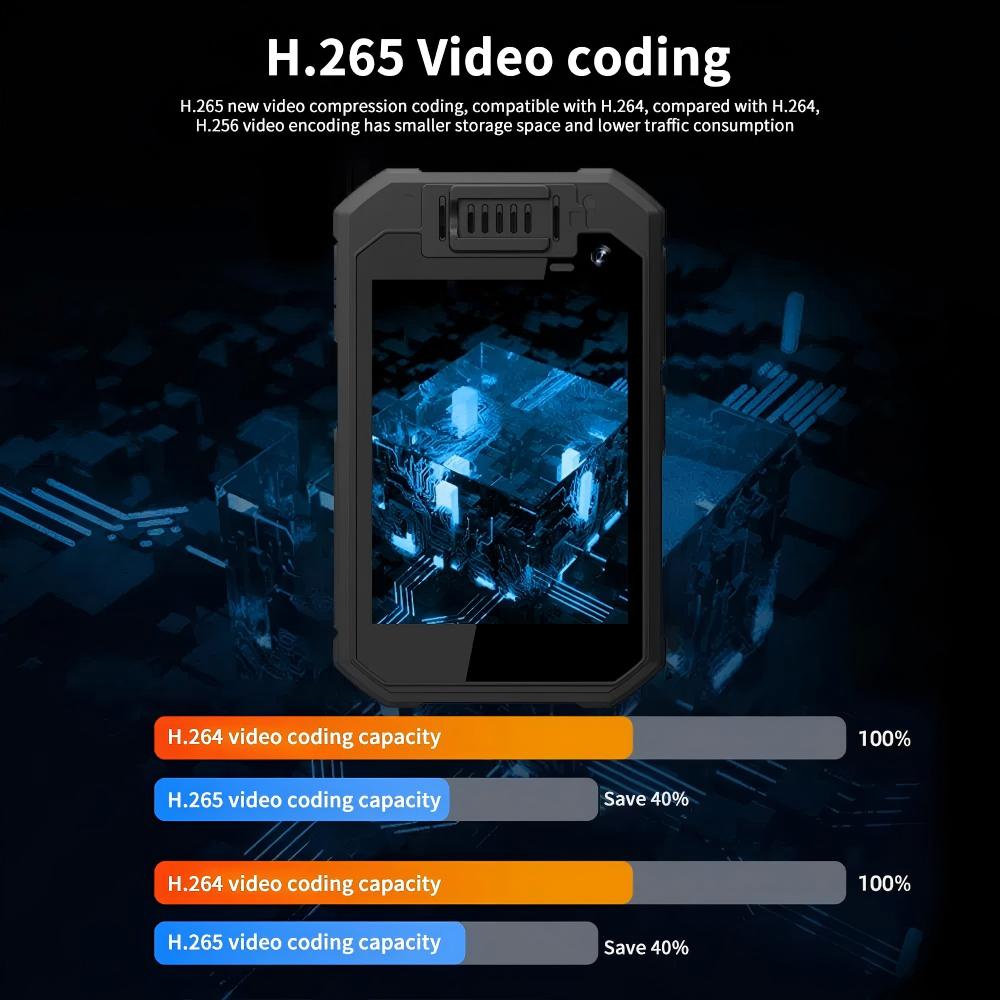

Video compression/ format |
H.265/H.264, MP4 |
Video resolution |
3840×2176/30fps，2560x1440P@30fps, 1920x1080P@30fps, 1280x720P@30fps |
Network video resolution |
2560x1440P, 1920x1080P, 1280x720P, 640x480P |
Dual-stream |
support(2 video streams for local record and remote view |

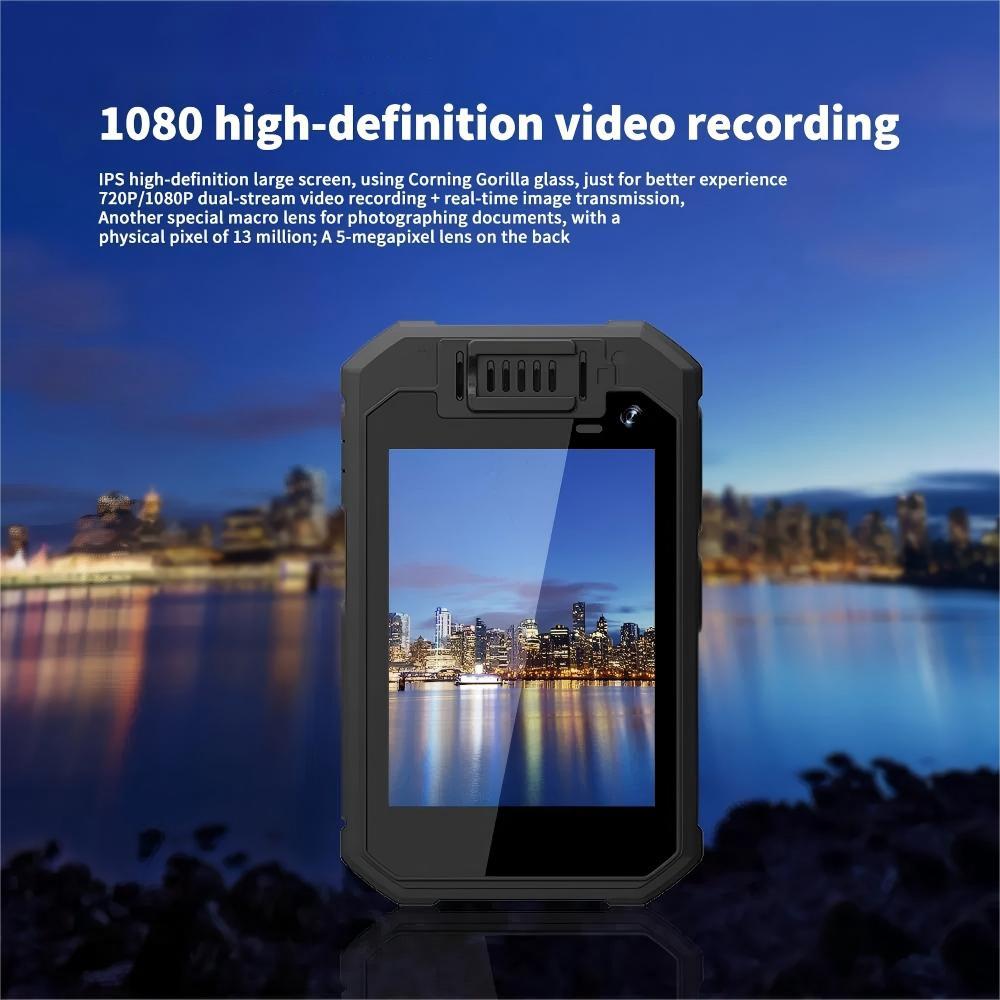

Display |
2.8 inches HD Touchscreen(480*640) |
One-touch recording |
Support |
Audio |
|
Audio format |
AAC/OPUS，MP3 |
Audio sampling rate |
48kHz |
Audio compression rate |
128kbps |
Network |
|
Frequency band |
GSM:B2/3/5/8; |
|
WCDMA:B1/5/8; |
|
5G： NR：N1/N28/N77/N78/N79/N41 4G：LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28A 4G：LTE TDD: B34/B38/B39/B40/B41 |
Sim-card slot |
Built-in, Nano-Sim Card |
WiFi |
2.4G/5.8G Wifi 5 ac, support IEEE802.11 ac/a/b/g/n |

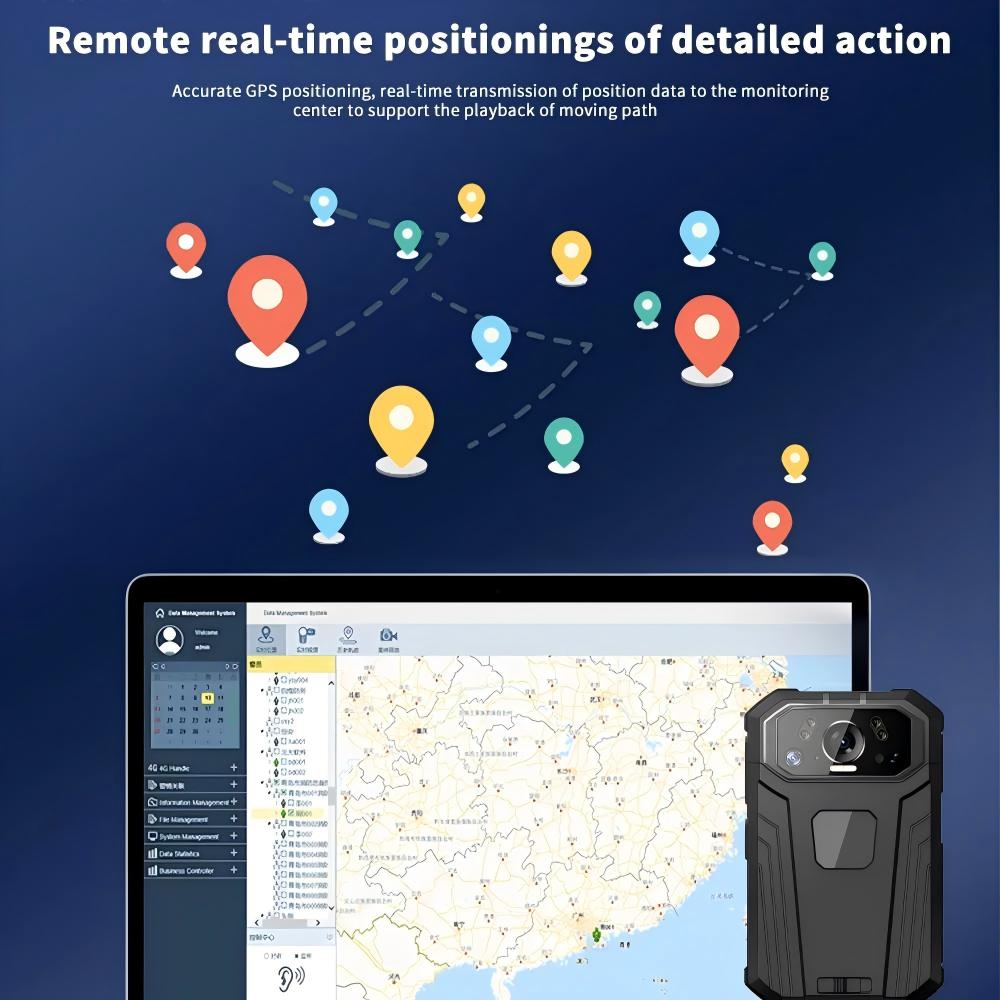

Position |
Built-in, GPS/BDS/GLONASS |
G/M-Sensor |
Built-in |
BT |
Bluetooth 5.0 LE |

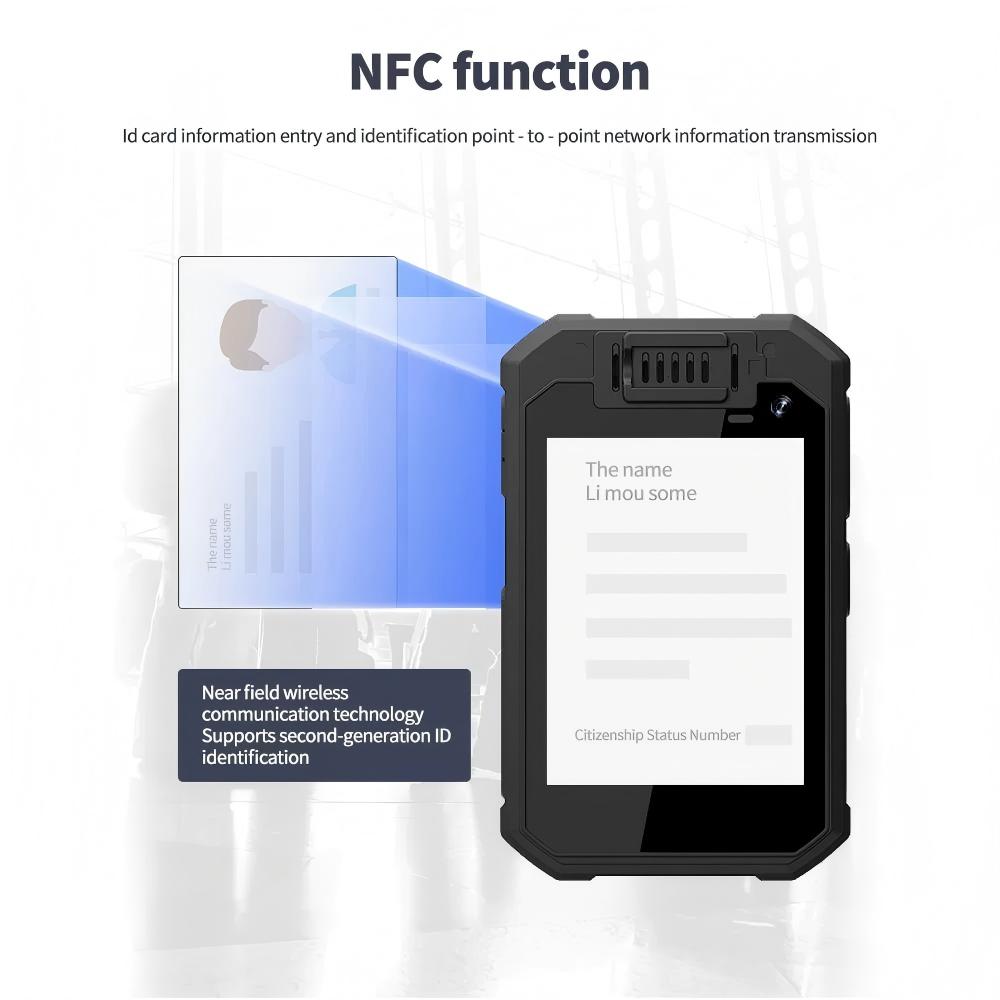

NFC |
Support (optional) |
Night vision |
|
Night vision |
1 white LED, 4 IR LED; |
|
Can recognize face within 3 meters and human body contours within 10 meters |
White balance |
Auto white balance |
Red and blue flashing lights |
Built-in |
Laser light |
Support(optional) |
Interface |
|
Shortcut button |
PTT/Power/Video/Audio/ Snapshot/SOS/M key |
SIM |
Nano-Sim card slot |
TF-Card |
1 x TF card |
Type-C |
1 x Type-C |
Fingerprint recognition |
Optional |
Battery |
|
Type |
Removable |
Capacity |
3400mAh replaceable battery, 10 hours continuous recording |
Charging time |
Fast charging 5V/2A, charging time is less than or equal to 3 hours |
Continuous electricity system |
Built-in a small battery, battery replacement and continuous record |
Voltage |
3.8V |
Discharge voltage |
3V |
Charging voltage |
4.35V |
Microphone |
2 x MIC |
Audio Amplifier |
1.5W |
General |
|
OTG |
Support |
Storage capacity |
EMMC/TF-card 64GB(up to 512GB) |
Watermark |
OSD |
IP grade |
IP67 |
Drop test |
2 meters |
Weight |
177g |
Dimensions |
95.7mm × 59.3mm ×27.3mm |
Working temperature |
-20℃～+55℃ |
Working humidity |
40％--90％ |
